Part Details | CENTRIFUGAL FAN HOUSING
4140-01-147-9258 The outer casing of a centrifugal fan designed to inclose an impeller. It is usually of one piece construction containing inlet(s) and outlets.
Alternate Parts: 18001784CC1, 406259, 2624602, 26246-02, A026246, A0-26246, 91773163, 9177316-3, 9177316, 4140-01-147-9258, 01-147-9258, 4140011479258, 011479258
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | FEB 24, 1983 | 01-147-9258 | 61534 ( HOUSING, CENTRIFUGAL FAN ) |

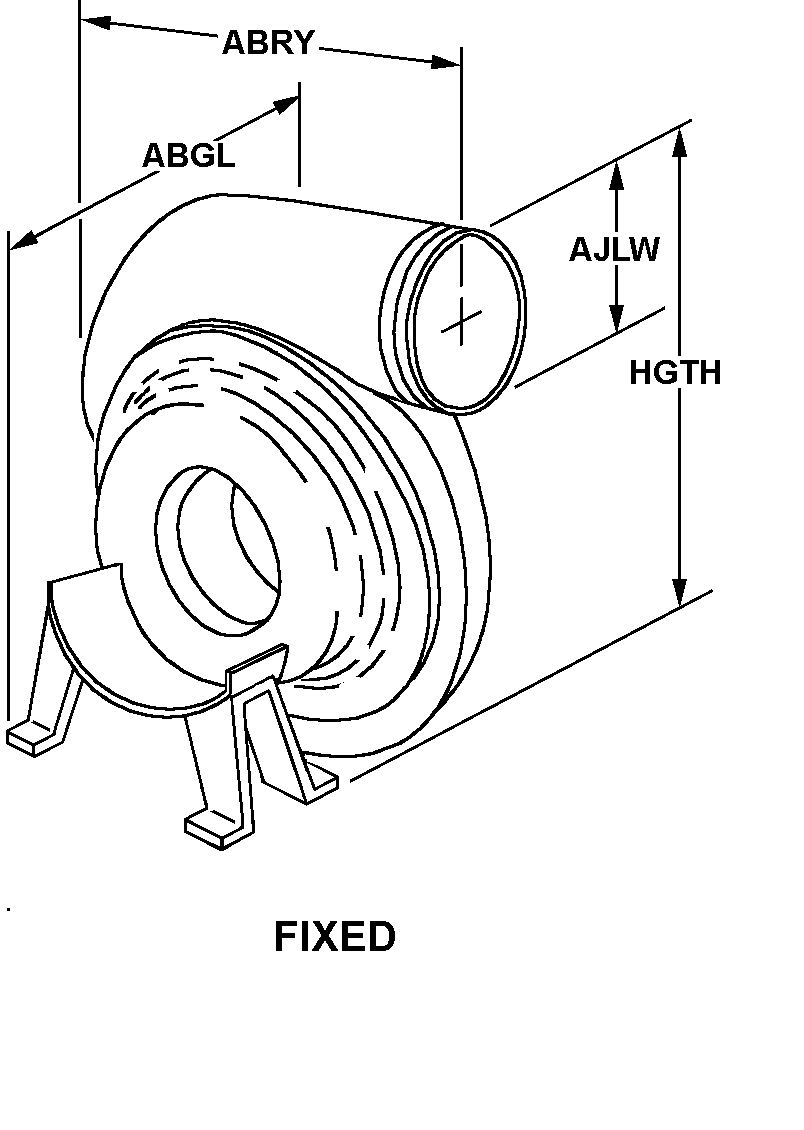

REFERENCE DRAWINGS & PICTURES
FIXED
Cross Reference | NSN 4140-01-147-9258
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18001784CC1 | 04810 | ASHLAND ELECTRIC PRODUCTS, INC. |
| 406259 | 82877 | ROTRON INCORPORATEDDBA AMETEK ROTRON |
| 26246-02 | 82877 | ROTRON INCORPORATEDDBA AMETEK ROTRON |
| A0-26246 | 82877 | ROTRON INCORPORATEDDBA AMETEK ROTRON |
| 9177316-3 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 9177316 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 4140-01-147-9258
| Characteristic | Specifications |
|---|---|
| HOUSING STYLE | FIXED |
| WIDTH | 3.844 INCHES NOMINAL |
| LENGTH | 15.625 INCHES NOMINAL |
| OUTLET INSIDE DIAMETER | 2.281 INCHES NOMINAL |
| HEIGHT | 8.625 INCHES NOMINAL |
| PRIME MOVER FOR WHICH DESIGNED | ELECTRIC MOTOR |
| END ITEM IDENTIFICATION | 4140-00-875-9846 |
