Part Details | FIRE FIGHTING HOSE NIPPLE
4210-00-262-9211 A straight fitting used to join two internally threaded fire hose connections. It has fire hose connections at both ends externally threaded with the same size standard hose threads. The center section is lugged or suitable shaped to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Alternate Parts: 3361 12, 336-1 1-2, 13218E04732, 13218E0473-2, 5414565, 54-14565, MILC52404, MILDTL52404, MIL-DTL-52404, MILC52404, MIL-C-52404, 4210-00-262-9211, 00-262-9211, 4210002629211, 002629211
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | JUL 13, 1973 | 00-262-9211 | 51066 ( NIPPLE, HOSE, FIRE FIGHTING ) |
REFERENCE DRAWINGS & PICTURES

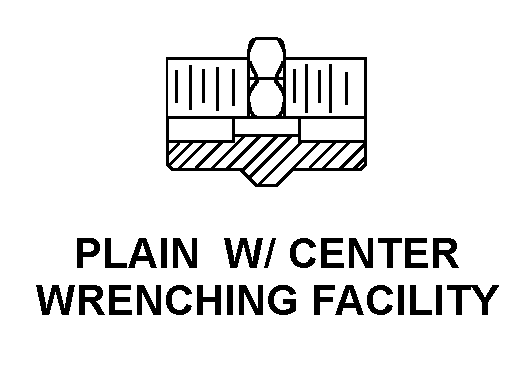

PLAIN W/ CENTER WRENCHING FACILITY
Cross Reference | NSN 4210-00-262-9211
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 336-1 1-2 | 00912 | AKRON BRASS COMPANY |
| 13218E0473-2 | 97403 | CECOM LR CENTER |
| 54-14565 | 63734 | KAITLIN CORP |
| MILC52404 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-DTL-52404 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-C-52404 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 4210-00-262-9211
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN W/ CENTER WRENCHING FACILITY |
| NOMINAL OVERALL LENGTH | 2.125 INCHES |
| NONDEFINITIVE SPEC/STD DATA | XIX TYPE |
