Part Details | FIRE FIGHTING TRUCK
4210-00-377-9412 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Alternate Parts: AS32P15, 4210-00-377-9412, 00-377-9412, 4210003779412, 003779412
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | MAR 16, 1974 | 00-377-9412 | 03254 ( TRUCK, FIRE FIGHTING ) |
REFERENCE DRAWINGS & PICTURES

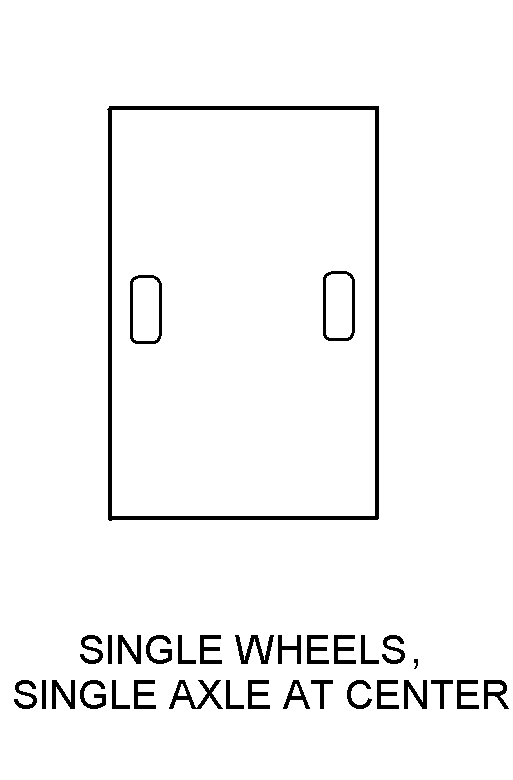

SINGLE WHEELS, SINGLE AXLE AT CENTER
Cross Reference | NSN 4210-00-377-9412
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS32P15 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4210-00-377-9412
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | CRASH AND RESCUE |
| EXTINGUISHING AGENT FOR WHICH DESIGNED | FOAM AND WATER |
| PUMP TYPE | CENTRIFUGAL |
| PUMP CAPACITY | 180.0 GALLONS PER MINUTE AND 1250.0 GALLONS PER MINUTE |
| PUMP DRIVE TYPE | POWER TAKE-OFF |
| WATER TANK QUANTITY | 1 |
| TANK CAPACITY | 6500.0 GALLONS |
| CHEMICAL TANK QUANTITY | 1 |
| CHEMICAL TANK CAPACITY | 515.0 GALLONS |
| CHEMICAL TYPE | FOAM |
| AERIAL LADDER | NOT INCLUDED |
| WHEEL ARRANGEMENT STYLE | 7 SINGLE WHEELS, SINGLE AXLE AT CENTER |
| FRONT WHEEL DRIVE FEATURE | INCLUDED |
| CHASSIS SIZE DESIGNATION | 8X8 |
| WHEELBASE SIZE | 304.000 INCHES |
| CAB LOCATION | OVER ENGINE |
| CAB DESIGN | CLOSED |
| GROSS WEIGHT RANGE | +71345.0 TO +130860.0 POUNDS |
| PRIME MOVER TYPE | DIESEL ENGINE |
| PRIME MOVER QUANTITY | 2 |
| CYLINDER QUANTITY | 8 |
| ENGINE MANUFACTURER NAME | DETROIT DIESEL |
| ENGINE MODEL NUMBER | 8V92T |
| WINCH | NOT INCLUDED |
