Part Details | FIRE FIGHTING TRUCK
4210-01-012-7147 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Alternate Parts: AS32P13A, MILT83303, MIL-T-83303, 4210-01-012-7147, 01-012-7147, 4210010127147, 010127147
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | NOV 16, 1975 | 01-012-7147 | 03254 ( TRUCK, FIRE FIGHTING ) |
REFERENCE DRAWINGS & PICTURES

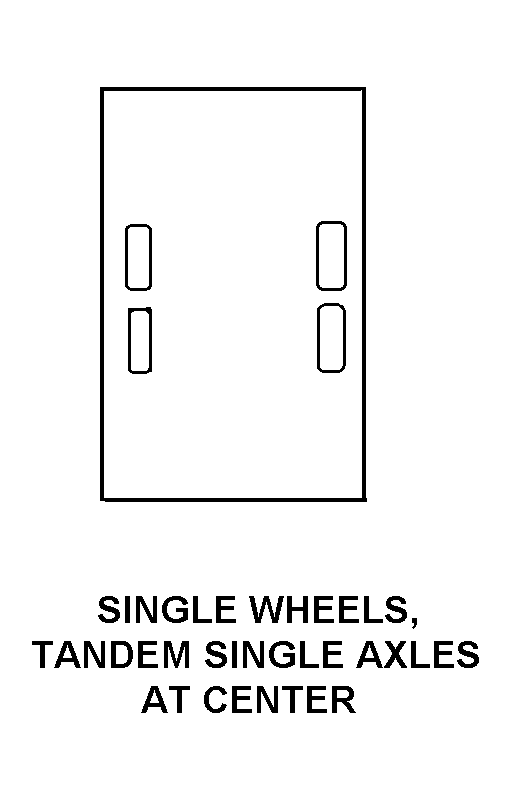

SINGLE WHEELS, TANDEM SINGLE AXLES AT CENTER
Cross Reference | NSN 4210-01-012-7147
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS32P13A | 80049 | DEPARTMENT OF THE AIR FORCE |
| MIL-T-83303 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4210-01-012-7147
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | AIRFIELD RAMP AND CRASH |
| EXTINGUISHING AGENT FOR WHICH DESIGNED | DRY CHEMICAL AND VAPORIZING LIQUID |
| CHEMICAL TANK QUANTITY | 2 |
| CHEMICAL TANK CAPACITY | 350.0 POUNDS |
| CHEMICAL TYPE | DRY AND BROMOCHLORODIFLUOROMETHANE |
| AERIAL LADDER | NOT INCLUDED |
| WHEEL ARRANGEMENT STYLE | SINGLE WHEELS, TANDEM SINGLE AXLES AT CENTER |
| FRONT WHEEL DRIVE FEATURE | INCLUDED |
| CHASSIS SIZE DESIGNATION | 4X4 |
| WHEELBASE SIZE | 131.000 INCHES |
| CAB LOCATION | CONVENTIONAL |
| CAB DESIGN | CLOSED |
| GROSS WEIGHT RANGE | +7000.0 TO +10000.0 POUNDS |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| PRIME MOVER QUANTITY | 1 |
| CYLINDER QUANTITY | 8 |
| ENGINE MANUFACTURER NAME | AMERICAN MOTORS CORP |
| ENGINE MODEL NUMBER | 360V8 |
| TRANSMISSION TYPE | AUTOMATIC |
| SPEED RANGE QUANTITY | 1 |
| FORWARD SPEED QUANTITY PER RANGE | 3 |
| REVERSE SPEED QUANTITY | 1 |
| WINCH | NOT INCLUDED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| FURNISHED ITEMS AND QUANTITY | BEACON1,SIREN1,SPOTLIGHT1 |
