Part Details | INDUSTRIAL SAFETY BELT
4240-01-398-1520 An adjustable band of flexible material having means for connecting the ends designed to be worn on the person by workmen such as linemen, firemen, forestry workers and the like, which, when used with a safety strap or life line, affords support and protection against falling. It may or may not come equipped with leg supports or leg loops. Excludes BELT,AIRCRAFT SAFETY.
Alternate Parts: GVP127, GVP-127, GVP127, GVP-127, 4240-01-398-1520, 01-398-1520, 4240013981520, 013981520
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | OCT 26, 1994 | 01-398-1520 | 07996 ( BELT, SAFETY, INDUSTRIAL ) |

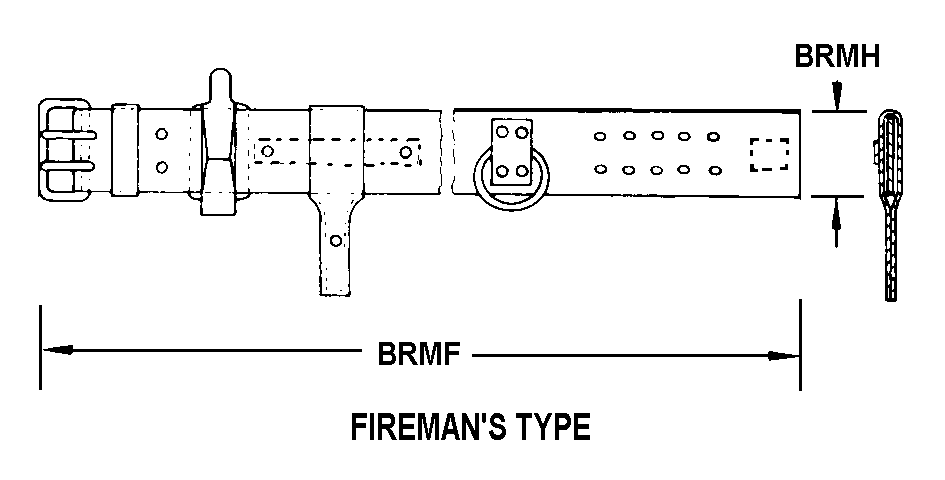

REFERENCE DRAWINGS & PICTURES
FIREMANS TYPE
Cross Reference | NSN 4240-01-398-1520
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GVP-127 | 76381 | 3M COMPANYDBA 3M |
| GVP-127 | 50378 | 3M COMPANYDIV OH&ESD |
Technical Data | NSN 4240-01-398-1520
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE |
| STYLE DESIGNATOR | FIREMANS TYPE |
| BODY BELT OVERALL LENGTH | 42.000 INCHES NOMINAL |
| BODY BELT WIDTH | 2.000 INCHES NOMINAL |
| NONSPARKING HARDWARE | NOT INCLUDED |
| SPECIAL FEATURES | WEBBED; ADJUSTABLE AND WASHABLE |
| END ITEM IDENTIFICATION | 4240-01-395-9180 |
