Part Details | PISTON PIN
4310-00-097-5930 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.
Alternate Parts: 200110DPC62, 3083B, 200110DPC62, 3083B, 200110DPC62, 157013PC135, 156414PC135, 157440PC135, 157437PC135, 157016PC135, 4310-00-097-5930, 00-097-5930, 4310000975930, 000975930
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | JAN 01, 1963 | 00-097-5930 | 16414 ( PIN, PISTON ) |
REFERENCE DRAWINGS & PICTURES
PLAIN ENDS

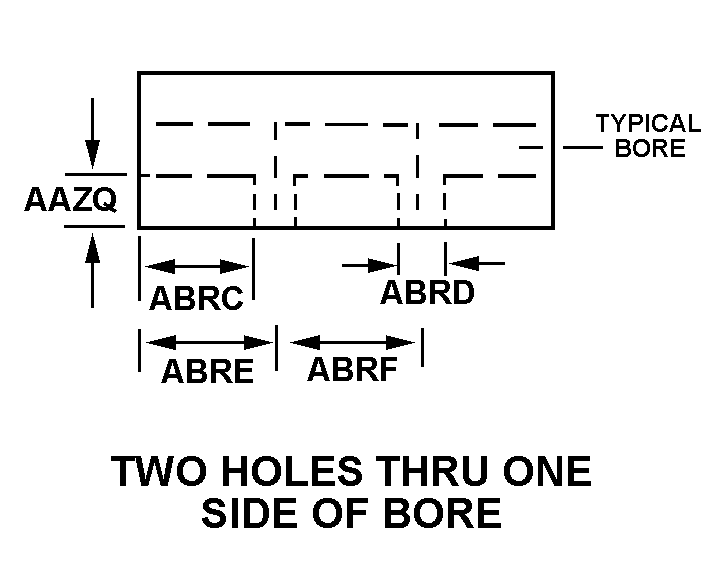

TWO HOLES THRU ONE SIDE OF BORE
STRAIGHT-THRU BORE
Cross Reference | NSN 4310-00-097-5930
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200110DPC62 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION |
| 3083B | 0AT62 | DRESSER-RAND COMPANYDBA RECIPROCATING PRODUCTS DIV |
| 200110DPC62 | 0AT62 | DRESSER-RAND COMPANYDBA RECIPROCATING PRODUCTS DIV |
| 3083B | 93236 | DRESSER-RAND COWORTHINGTON COMPRESSOR OPN |
| 200110DPC62 | 93236 | DRESSER-RAND COWORTHINGTON COMPRESSOR OPN |
| 157013PC135 | 93234 | WORTHINGTON COMPRESSORS INCAIR POWER AND CONSTRUCTION EQUIP DIV |
| 156414PC135 | 93234 | WORTHINGTON COMPRESSORS INCAIR POWER AND CONSTRUCTION EQUIP DIV |
| 157440PC135 | 93234 | WORTHINGTON COMPRESSORS INCAIR POWER AND CONSTRUCTION EQUIP DIV |
| 157437PC135 | 93234 | WORTHINGTON COMPRESSORS INCAIR POWER AND CONSTRUCTION EQUIP DIV |
| 157016PC135 | 93234 | WORTHINGTON COMPRESSORS INCAIR POWER AND CONSTRUCTION EQUIP DIV |
Technical Data | NSN 4310-00-097-5930
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| BODY STYLE | C PLAIN ENDS |
| OUTSIDE DIAMETER | 1.75000 INCHES NOMINAL |
| BODY LENGTH | 3.7250 INCHES NOMINAL |
| BORE STYLE | STRAIGHT-THRU BORE |
| BORE DIAMETER | 1.0000 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | TWO HOLES THRU ONE SIDE OF BORE |
| HOLE DEPTH | 0.3650 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.316 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.316 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.383 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 2.9910 INCHES NOMINAL |
