Part Details | RECIPROCATING COMPRESSOR
4310-00-097-9751 A positive displacement compressor designed to compress air or gas from an initial intake pressure to a higher discharge pressure by means of reciprocating piston(s) in cylinder(s). It is designed to be driven by an independent power source, such as an electric motor, gasoline or diesel engine, or the like. It does not include the prime mover, air storage tank, and the like. It may include various peripheral components, such as drive pulley, unloader, and the like.
Alternate Parts: 313975, AP252E, AP25-2E, 313975, AP252E, AP25-2E, 4310-00-097-9751, 00-097-9751, 4310000979751, 000979751
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | DEC 29, 1967 | 00-097-9751 | 03815 ( COMPRESSOR, RECIPROCATING ) |
REFERENCE DRAWINGS & PICTURES

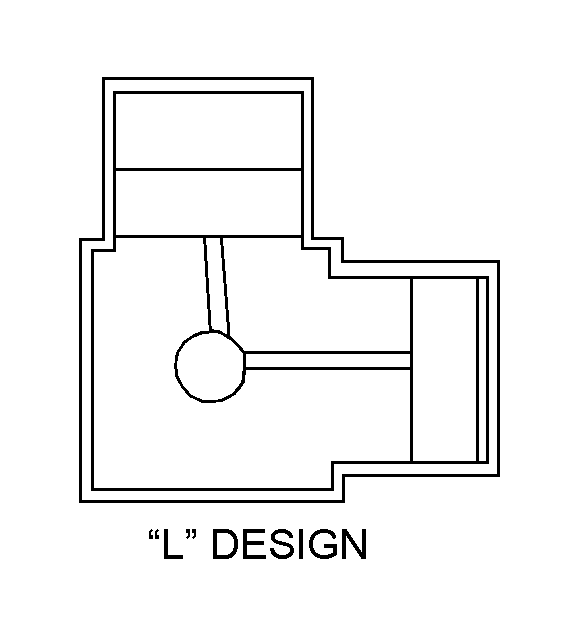

L DESIGN
Cross Reference | NSN 4310-00-097-9751
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 313975 | 33654 | HOWDEN FLUID SYSTEMS |
| AP25-2E | 33654 | HOWDEN FLUID SYSTEMS |
| 313975 | 58163 | MEGGITT (NORTH HOLLYWOOD), INC.DBA MEGGITT CONTROL SYSTEMS |
| AP25-2E | 58163 | MEGGITT (NORTH HOLLYWOOD), INC.DBA MEGGITT CONTROL SYSTEMS |
Technical Data | NSN 4310-00-097-9751
| Characteristic | Specifications |
|---|---|
| GAS FOR WHICH DESIGNED | AIR |
| COOLING SYSTEM DESIGN | SINGLE |
| COMPRESSOR COOLING MEDIUM | AIR |
| RECIPROCATING COMPRESSOR DESIGN | SINGLE ACTING |
| CYLINDER QUANTITY | 2 |
| CYLINDER ARRANGEMENT STYLE | L DESIGN |
| STAGE QUANTITY | 1 |
