Part Details | FLUID FILTER ASSEMBLY
4330-00-163-0311 Two or more FILTER, FLUID on a common mounting or mounted on each other. They may be separable and operate in series, parallel, or individually.
Alternate Parts: RFB401, FLR4154EB1C WPF4200, FLR415-4EB1C W/PF4200, 4330-00-163-0311, 00-163-0311, 4330001630311, 001630311
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | NOV 12, 1971 | 00-163-0311 | 32623 ( FILTER ASSEMBLY, FLUID ) |
REFERENCE DRAWINGS & PICTURES

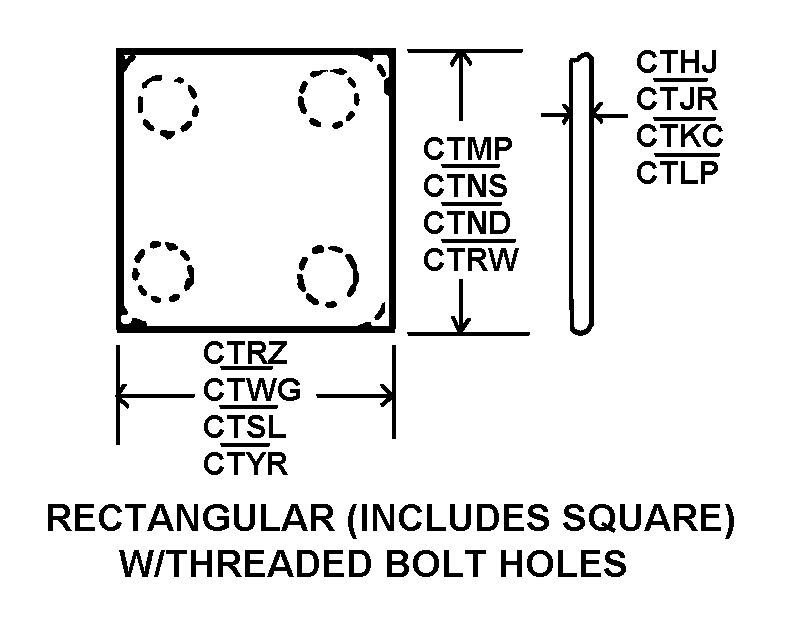

RECTANGULAR W/THREADED BOLT HOLES
RECTANGULAR W/THREADED BOLT HOLES
RECTANGULAR W/THREADED BOLT HOLES
RECTANGULAR W/THREADED BOLT HOLES
PLAIN
PLAIN
PLAIN
PLAIN
Cross Reference | NSN 4330-00-163-0311
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RFB401 | 02249 | PARKER HANNIFIN CORPORATIONDBA GRESEN HYDRAULICS DIV HYDRAULIC |
| FLR415-4EB1C W/PF4200 | 02249 | PARKER HANNIFIN CORPORATIONDBA GRESEN HYDRAULICS DIV HYDRAULIC |
Technical Data | NSN 4330-00-163-0311
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | NONREUSABLE |
| UNIT QUANTITY | 2 |
| FILTERING ELEMENT QUANTITY | 2 |
| FILTRATION RATING IN MICRONS | 10.0 NOMINAL |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 250.0 DEG FAHRENHEIT MAXIMUM |
| FIRST INTAKE FLANGE SHAPE STYLE | RECTANGULAR W/THREADED BOLT HOLES |
| FIRST INTAKE FLANGE THICKNESS | 0.750 INCHES NOMINAL |
| FIRST INTAKE FLANGE LENGTH | 5.000 INCHES NOMINAL |
| FIRST INTAKE FLANGE WIDTH | 10.750 INCHES NOMINAL |
| FIRST INTAKE FLANGE FACE STYLE | PLAIN |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING HOLE QUANTITY | 4 |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 2.380 INCHES NOMINAL AND 6.750 INCHES NOMINAL |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL THREAD SIZE | 0.375 INCHES |
| FILTERING SYSTEM FOR WHICH DESIGNED | FULL FLOW |
| SPECIAL FEATURES | FURNISHED WITH 1 GAUGE |
