Part Details | NUCLEAR COOLANT SYSTEM SEAL RING
4470-00-965-1218 An item designed to be seal welded to segments on components of a nuclear power plant coolant system, such as valves, demineralizers, heat exchangers, pumps, and the like, to form an efficient seal against the leakage of the primary coolant to the ambient. Excludes SEAL RING, METAL.
Alternate Parts: 618J819 PC 295, 606C987H01, 920J547PC351, 4470-00-965-1218, 00-965-1218, 4470009651218, 009651218
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | JAN 01, 1960 | 00-965-1218 | 22190 ( SEAL RING, NUCLEAR COOLANT SYSTEM ) |
REFERENCE DRAWINGS & PICTURES

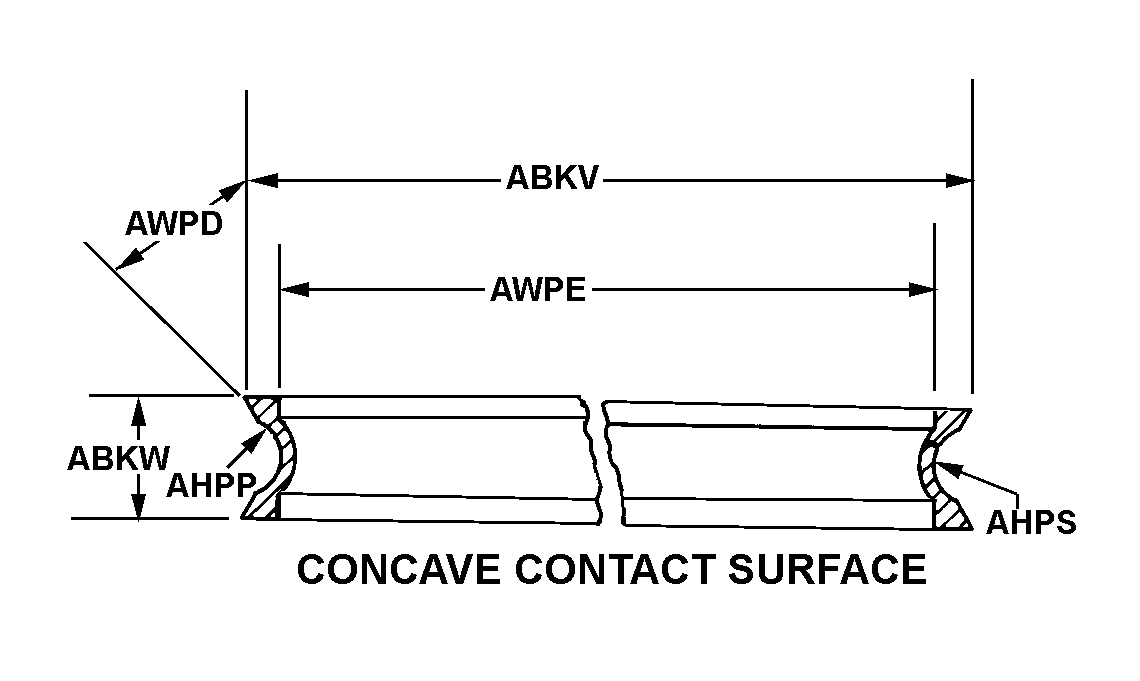

CONCAVE CONTACT SURFACE
Cross Reference | NSN 4470-00-965-1218
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 618J819 PC 295 | 04808 | CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION |
| 606C987H01 | 04808 | CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION |
| 920J547PC351 | 04808 | CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION |
Technical Data | NSN 4470-00-965-1218
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | CONCAVE CONTACT SURFACE |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH NAVICP ACTIVITY HX QUALITY CONTROL, MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
