Part Details | AIR CONDITIONING-HEATING COLLAR
4520-01-018-8223 A straight formed fitting with identical internal ends, used to form a connection of two air conditioning-heating fittings.
Alternate Parts: 5234, 760481, 760200, 7147231, 714723-1, 714723, 4520-01-018-8223, 01-018-8223, 4520010188223, 010188223
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | MAR 30, 1976 | 01-018-8223 | 15679 ( COLLAR, AIR CONDITIONING-HEATING ) |
REFERENCE DRAWINGS & PICTURES

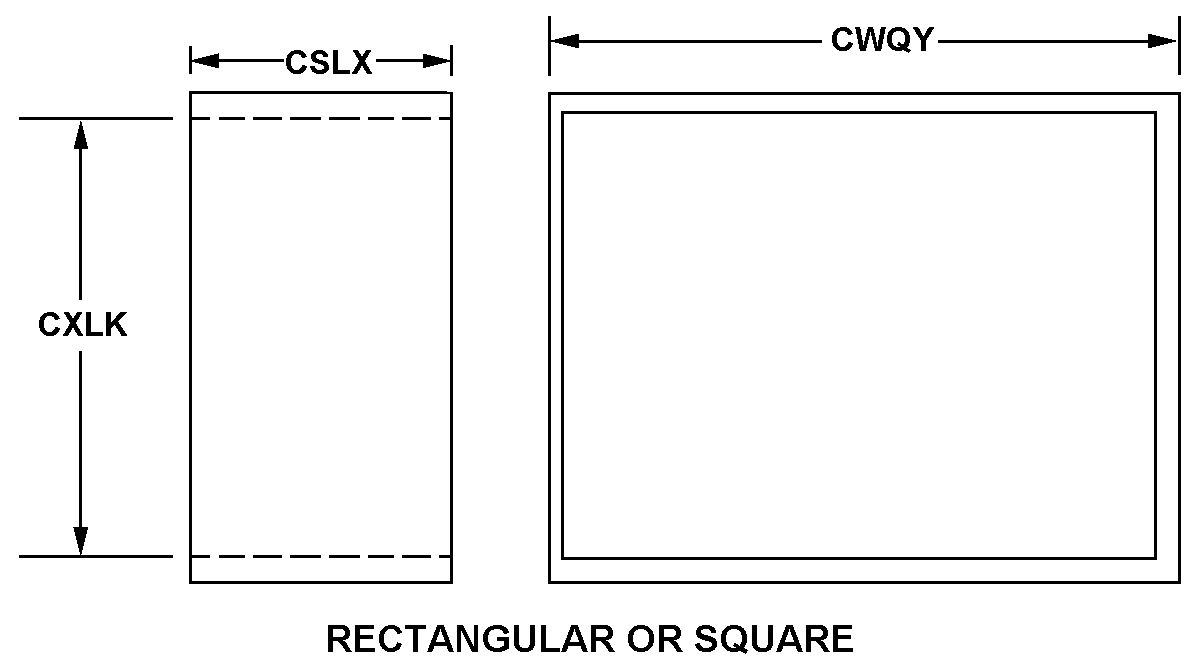

RECTANGULAR OR SQUARE
Cross Reference | NSN 4520-01-018-8223
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5234 | 99135 | FLEXCO, INC. |
| 760481 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
| 760200 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
| 714723-1 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
| 714723 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 4520-01-018-8223
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 34.380 INCHES NOMINAL |
| OVERALL HEIGHT | 67.560 INCHES NOMINAL |
| OVERALL DEPTH | 8.620 INCHES NOMINAL |
| MATERIAL | PLASTIC AND RUBBER |
| STYLE DESIGNATOR | RECTANGULAR OR SQUARE |
| FITTING OVERALL LENGTH | 8.620 INCHES NOMINAL |
| FITTING INSIDE HEIGHT | 31.000 INCHES MINIMUM AND 31.750 INCHES MAXIMUM |
| FITTING INSIDE WIDTH | 64.630 INCHES NOMINAL |
