Part Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-117-6753 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.
Alternate Parts: 9723094, 972309-4, 9723094, 972309-4, 4520-01-117-6753, 01-117-6753, 4520011176753, 011176753
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | AUG 20, 1981 | 01-117-6753 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
REFERENCE DRAWINGS & PICTURES
STRIP, WEDGE

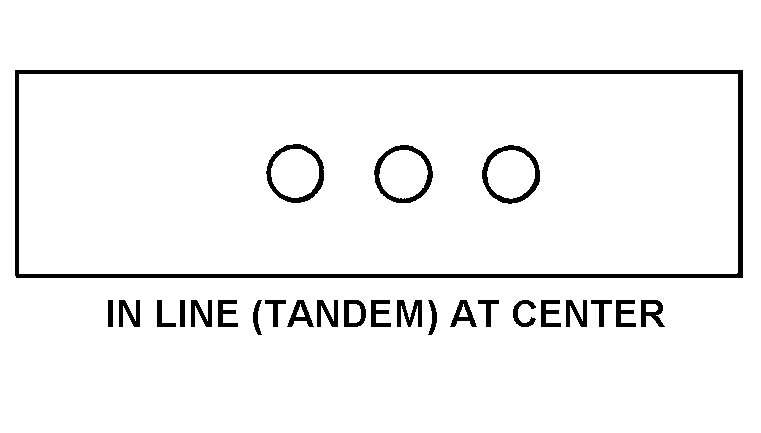

IN LINE (TANDEM) AT CENTER
Cross Reference | NSN 4520-01-117-6753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 972309-4 | 98905 | FEDERAL SIGNAL INTERNATIONAL FSC LTDDIV ELECTRICAL PRODUCTS |
| 972309-4 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
Technical Data | NSN 4520-01-117-6753
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRIP, WEDGE |
| OVERALL LENGTH | 5.700 INCHES NOMINAL |
| TERMINAL ARRANGEMENT STYLE | IN LINE (TANDEM) AT CENTER |
| FREQUENCY IN HERTZ | 400.0 |
| UNPACKAGED UNIT HEIGHT | 3.500 INCHES NOMINAL |
| UNPACKAGED UNIT WIDTH | 0.040 INCHES MAXIMUM |
