Part Details | METALLIC BENT TUBE
4710-00-066-4428 A bent hollow item, welded or seamless. It has a round, square or any other cross section, with a continuous periphery. It is primarily designed to convey fluids, gases and/or semisolids. Excludes items of circular cross section which conform in dimensional characteristics to PIPE, METALLIC; ELBOW, PIPE; ELBOW, TUBE; BEND, ELECTRICAL CONDUIT; BEND, PIPE, RETURN; and BEND, TUBE, RETURN. For items with end fittings on one or both ends, see TUBE ASSEMBLY, METAL.
Alternate Parts: 1202711, 1202711, 4710-00-066-4428, 00-066-4428, 4710000664428, 000664428
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-066-4428 | 32507 ( TUBE, BENT, METALLIC ) |
REFERENCE DRAWINGS & PICTURES

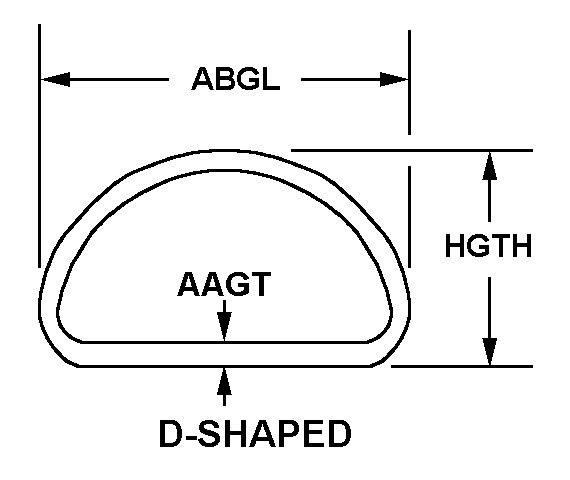

D-SHAPED
PLAIN
PLAIN
Cross Reference | NSN 4710-00-066-4428
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1202711 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 1202711 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4710-00-066-4428
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-3520 MIL SPEC SINGLE MATERIAL RESPONSE |
| CROSS-SECTIONAL SHAPE STYLE | D-SHAPED |
| WALL THICKNESS | 0.035 INCHES NOMINAL |
| WIDTH | 0.500 INCHES NOMINAL |
| FIRST END STYLE | PLAIN |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| CONSTRUCTION | SEAMLESS |
| HEAT TREATMENT | ANNEALED |
