Part Details | PLASTIC PIPE
4710-00-106-1660 A tubular product formed from plastic material. The nominal pipe size and outside diameter conform to iron pipe size designators or the dimensions conform to Standard Thermoplastic Pipe Dimensions Ratio (SDR) Tables. It may have threaded ends or the ends may be capable of being formed by heating. For items not conforming to these dimensioning criteria, see TUBING, NONMETALLIC.
Alternate Parts: LP001221, 4710-00-106-1660, 00-106-1660, 4710001061660, 001061660
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUL 17, 1968 | 00-106-1660 | 21439 ( PIPE, PLASTIC ) |
REFERENCE DRAWINGS & PICTURES

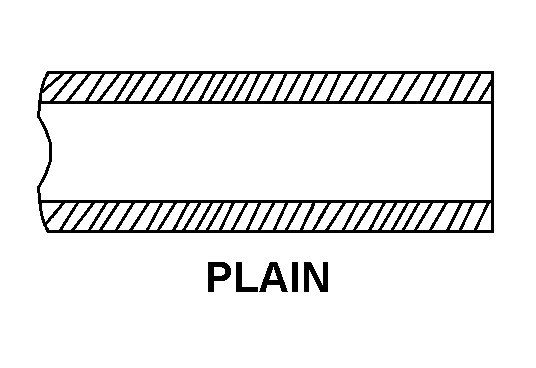

PLAIN
Cross Reference | NSN 4710-00-106-1660
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LP001221 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4710-00-106-1660
| Characteristic | Specifications |
|---|---|
| NOMINAL PIPE SIZE DESIGNATION | 6.000 INCHES |
| WALL THICKNESS | 0.200 INCHES NOMINAL |
| OUTSIDE DIAMETER | 6.275 INCHES NOMINAL |
| LENGTH | 10.000 FEET NOMINAL |
| END CONNECTION STYLE | PLAIN |
| COUPLING | INCLUDED |
| COLOR | BLACK |
| SPECIAL FEATURES | PERFORATED |
| DEPARTURE FROM CITED DESIGNATOR | FEAT |
