Part Details | PLASTIC PIPE
4710-00-197-4910 A tubular product formed from plastic material. The nominal pipe size and outside diameter conform to iron pipe size designators or the dimensions conform to Standard Thermoplastic Pipe Dimensions Ratio (SDR) Tables. It may have threaded ends or the ends may be capable of being formed by heating. For items not conforming to these dimensioning criteria, see TUBING, NONMETALLIC.
Alternate Parts: 11221, 11-221, 4710-00-197-4910, 00-197-4910, 4710001974910, 001974910
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | DEC 12, 1971 | 00-197-4910 | 21439 ( PIPE, PLASTIC ) |
REFERENCE DRAWINGS & PICTURES

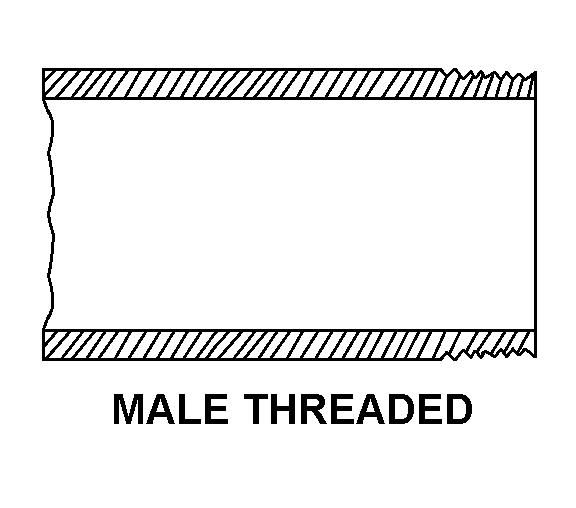

MALE THREADED
Cross Reference | NSN 4710-00-197-4910
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11-221 | 1Z473 | PAKON INCDBA IMPAK DIVISION |
Technical Data | NSN 4710-00-197-4910
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYVINYL CHLORIDE |
| NOMINAL PIPE SIZE DESIGNATION | 0.500 INCHES |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| END CONNECTION STYLE | MALE THREADED |
| TERMINATION THREADS PER INCH | 14 |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| SPECIAL FEATURES | OTHER END CRIMPED CLOSED O/A LG 45.000 IN. 90 DEG ANGLE |
