Part Details | METALLIC BENT TUBE
4710-00-237-9927 A bent hollow item, welded or seamless. It has a round, square or any other cross section, with a continuous periphery. It is primarily designed to convey fluids, gases and/or semisolids. Excludes items of circular cross section which conform in dimensional characteristics to PIPE, METALLIC; ELBOW, PIPE; ELBOW, TUBE; BEND, ELECTRICAL CONDUIT; BEND, PIPE, RETURN; and BEND, TUBE, RETURN. For items with end fittings on one or both ends, see TUBE ASSEMBLY, METAL.
Alternate Parts: 8S782, 8S0782, 4710-00-237-9927, 00-237-9927, 4710002379927, 002379927
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | DEC 24, 1971 | 00-237-9927 | 32507 ( TUBE, BENT, METALLIC ) |
REFERENCE DRAWINGS & PICTURES
PLAIN ROUND
PLAIN

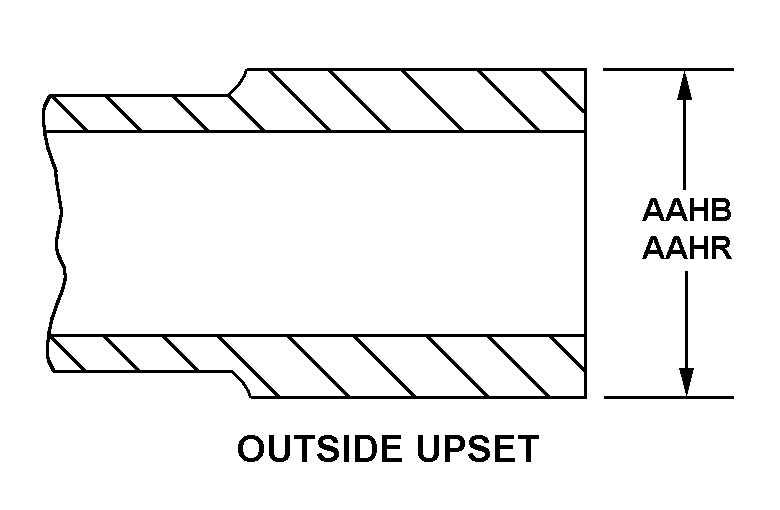

OUTSIDE UPSET
PLAIN
OUTSIDE UPSET
Cross Reference | NSN 4710-00-237-9927
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8S782 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 8S0782 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 4710-00-237-9927
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CROSS-SECTIONAL SHAPE STYLE | PLAIN ROUND |
| WALL THICKNESS | 0.065 INCHES NOMINAL |
| DIAMETER | 1.125 INCHES NOMINAL |
| FIRST END STYLE | OUTSIDE UPSET |
| FIRST END OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 6 PLAIN |
| SECOND END OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| CONSTRUCTION | SEAMLESS |
| SPECIAL FEATURES | W/MTG BRACKET |
