Part Details | PREFORMED HOSE
4720-00-082-1681 A length of nonmetallic hose, molded to a predetermined shape and size.
Alternate Parts: 25671200, 256712-00, ZZH428, ZZ-H-428, 25671200, 256712-00, 256712B, 256712-B, 4720-00-082-1681, 00-082-1681, 4720000821681, 000821681
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-082-1681 | 17271 ( HOSE, PREFORMED ) |
REFERENCE DRAWINGS & PICTURES

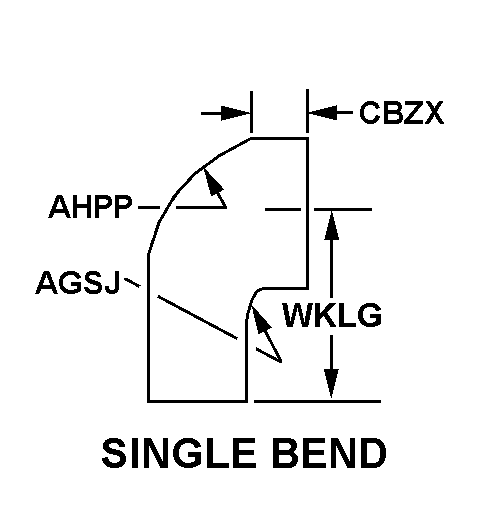

SINGLE BEND
Cross Reference | NSN 4720-00-082-1681
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 256712-00 | 1ML14 | BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS |
| ZZ-H-428 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 256712-00 | 28265 | HERCULES ENGINE CO INC |
| 256712-B | 28265 | HERCULES ENGINE CO INC |
Technical Data | NSN 4720-00-082-1681
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE BEND |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND A GRADE AND 2 CLASS |
| WALL THICKNESS | 0.234 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| WORKING LENGTH | 4.875 INCHES NOMINAL |
| BEND RADIUS | 1.000 INCHES NOMINAL |
| FIRST ARM LENGTH | 3.886 INCHES NOMINAL |
| SECOND ARM LENGTH | 3.437 INCHES NOMINAL |
