Part Details | METALLIC HOSE
4720-00-114-0902 A flexible, tubular item having a metallic tube inner conveying surface. It may have one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, solids, or sound waves. For items with fittings on one or both ends, see HOSE ASSEMBLY, METALLIC. For items used to protect electrical wires or cables, see CONDUIT, RACEWAY (AS MODIFIED).
Alternate Parts: 1053618, 1053618, 105-3618, 1053618, 105-3618, MJ14S7, 4720-00-114-0902, 00-114-0902, 4720001140902, 001140902
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | SEP 11, 1968 | 00-114-0902 | 08412 ( HOSE, METALLIC ) |
REFERENCE DRAWINGS & PICTURES
ROUND

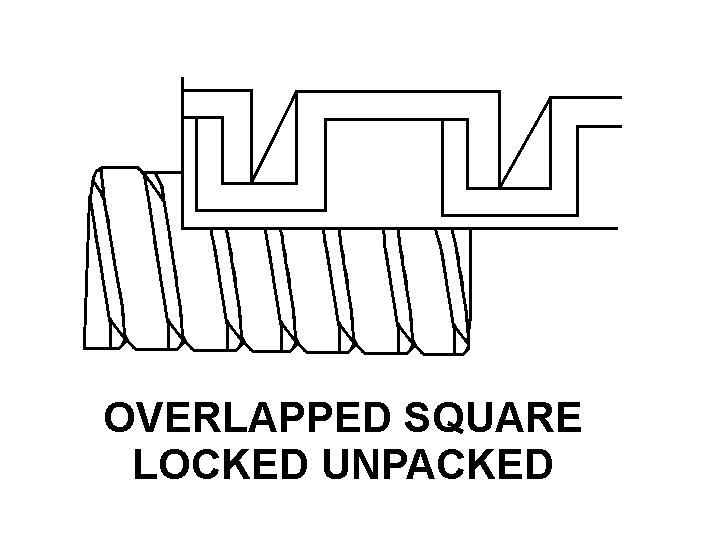

OVERLAPPED SQUARE LOCKED UNPACKED
Cross Reference | NSN 4720-00-114-0902
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1053618 | 93742 | DRS CONSOLIDATED CONTROLS, INC. |
| 105-3618 | 93742 | DRS CONSOLIDATED CONTROLS, INC. |
| 105-3618 | 98296 | STANDARD MFG CO INC |
| MJ14S7 | 98296 | STANDARD MFG CO INC |
Technical Data | NSN 4720-00-114-0902
| Characteristic | Specifications |
|---|---|
| OUTER COVERING ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| MEASURING METHOD AND LENGTH | RL22.000 INCHES NOMINAL |
| MINIMUM INSIDE BENDING RADIUS | 7.000 INCHES |
| INNER CONVEYING TUBE STYLE | OVERLAPPED SQUARE LOCKED UNPACKED |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.875 INCHES NOMINAL |
