Part Details | GREASE CUP
4730-00-061-7306 An item to be mounted on machinery, designed to hold grease and supply it to parts of machinery.
Alternate Parts: GA7004, 4730000617306, 32546 ITEM 66, 3254-6 ITEM 66, 32546, 3254-6, 32546 ITEM 66, 3254-6 ITEM 66, 3300A77A0146001, 3300A77A0146-001, 3300A77A0146, AUC254TN64 ITEM 56, A/UC254TN/64 ITEM 56, MILDTL1213, MIL-DTL-1213, MS357585, MS35758-5, 4730-00-061-7306, 00-061-7306, 4730000617306, 000617306
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-061-7306 | 03176 ( CUP, GREASE ) |

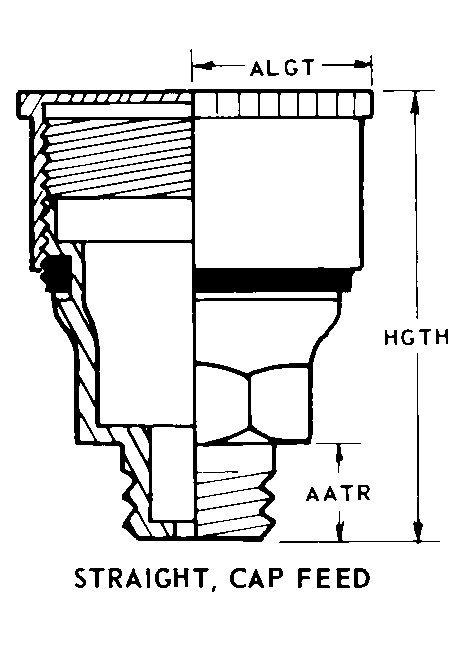

REFERENCE DRAWINGS & PICTURES
STRAIGHT, CAP FEED
Cross Reference | NSN 4730-00-061-7306
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GA7004 | 24981 | APACHE CORPGITS BROS MFG CO |
| 4730000617306 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 3254-6 ITEM 66 | 95402 | ELECTRIC BOAT CORPDBA ELECTRO DYNAMIC |
| 3254-6 | 95402 | ELECTRIC BOAT CORPDBA ELECTRO DYNAMIC |
| 3254-6 ITEM 66 | 96169 | ELECTRIC BOAT CORPORATION |
| 3300A77A0146-001 | 12532 | GENERAL ELECTRIC COMOTOR BUSINESS GROUP |
| 3300A77A0146 | 12532 | GENERAL ELECTRIC COMOTOR BUSINESS GROUP |
| A/UC254TN/64 ITEM 56 | KC5G2 | MAWDSLEYS BER LTD |
| MIL-DTL-1213 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS35758-5 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 4730-00-061-7306
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT, CAP FEED |
| ASSEMBLY CLEARANCE RADIUS | 0.625 INCHES NOMINAL |
| HEIGHT | 1.875 INCHES NOMINAL |
| GREASE CAPACITY | 0.500 OUNCES |
