Part Details | PNEUMATIC TANK VALVE
4820-00-042-9536 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Alternate Parts: 2620420BB64314, 26-20420BB643-14, 2620420AA64313, 26-20420AA643-13, SK20420643100AA, 118515001, 118515-001, 0133130000, 013-3130-000, 013313000, 013-3130-00, 0133130000, 013-3130-000, 013313000, 013-3130-00, 4820-00-042-9536, 00-042-9536, 4820000429536, 000429536
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1961 | 00-042-9536 | 06509 ( VALVE, PNEUMATIC TANK ) |
REFERENCE DRAWINGS & PICTURES

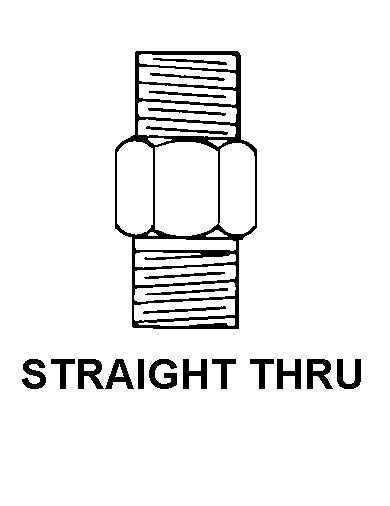

STRAIGHT THRU
PLAIN
GASKET SEAL
PLAIN
GASKET SEAL
PLAIN
GASKET SEAL
PLAIN
GASKET SEAL
Cross Reference | NSN 4820-00-042-9536
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26-20420BB643-14 | 17875 | EATON CORPORATIONDBA AIR CONTROLS DIVISION DIV AIR |
| 26-20420AA643-13 | 17875 | EATON CORPORATIONDBA AIR CONTROLS DIVISION DIV AIR |
| SK20420643100AA | 17875 | EATON CORPORATIONDBA AIR CONTROLS DIVISION DIV AIR |
| 118515-001 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
| 013-3130-000 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 013-3130-00 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 013-3130-000 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
| 013-3130-00 | 64648 | WELLS-GARDNER ELECTRONICS CORP |
Technical Data | NSN 4820-00-042-9536
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT THRU |
| BODY MATERIAL | BRASS |
| OUTSIDE SURFACE TREATMENT | NICKEL, QQ-N-290, CLASS 1, TYPE 7 |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | W ANY ACCEPTABLE |
| FLOW CONTROL DEVICE MATERIAL | ANY ACCEPTABLE |
| STEM MATERIAL | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.125 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | GASKET SEAL |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| CORE ENVIRONMENTAL PROTECTION | CORROSION AND OIL RESISTANT |
| COMMERCIAL CORE LENGTH DESIGNATOR | SHORT |
| SPRING MATERIAL | STEEL |
| COMMERCIAL SPRING TENSION RATING | MEDIUM |
| FURNISHED ITEMS | CAP |
