Part Details | CHECK VALVE
4820-00-044-0543 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Alternate Parts: 2W86657, 2W88543, 2W86657, FIG N0. T433Y, FIG N0. T433-Y, FIG NO. T433Y 1 14, FIG NO. T433-Y 1 1-4, 4820-00-044-0543, 00-044-0543, 4820000440543, 000440543
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAY 17, 1968 | 00-044-0543 | 05487 ( VALVE, CHECK ) |
REFERENCE DRAWINGS & PICTURES

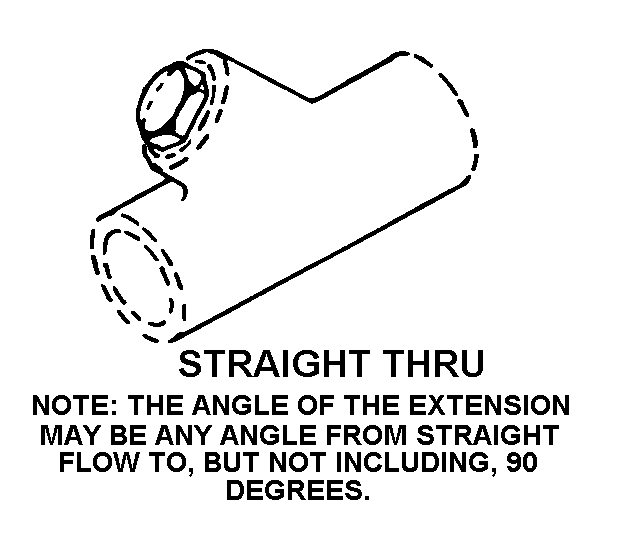

STRAIGHT THRU
Cross Reference | NSN 4820-00-044-0543
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2W86657 | 33968 | CLARK EQUIPMENT COMPANYDBA DOOSAN INFRACORE PORTABLE POWER |
| 2W88543 | 30760 | INGERSOLL RAND CO |
| 2W86657 | 30760 | INGERSOLL RAND CO |
| FIG N0. T433-Y | 12168 | NORTHERN INDIANA BUSINESS SERVICES |
| FIG NO. T433-Y 1 1-4 | 12168 | NORTHERN INDIANA BUSINESS SERVICES |
Technical Data | NSN 4820-00-044-0543
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | AUTOMATIC |
| MOUNTING POSITION | HORIZONTAL |
| RENEWABLE SEAT RING TYPE | THREADED |
| DISK LOADING METHOD | WEIGHT |
