Part Details | PLUG VALVE
4820-00-045-3482 A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG.
Alternate Parts: 2285107, 64422114SS, 644-221-1/4SS, 311221 14SS, 311-221 1-4SS, 4820-00-045-3482, 00-045-3482, 4820000453482, 000453482
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAY 16, 1967 | 00-045-3482 | 05490 ( VALVE, PLUG ) |
REFERENCE DRAWINGS & PICTURES

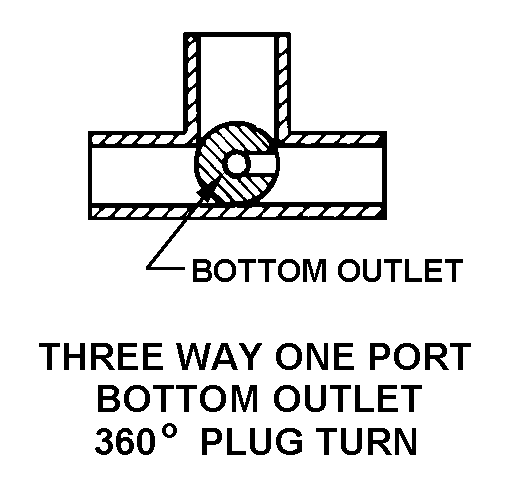

THREE-WAY ONE PORT BOTTOM OUTLET 360 DEGREE PLUG TURN
Cross Reference | NSN 4820-00-045-3482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2285107 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 644-221-1/4SS | 09990 | PARKER-HANNIFIN CORPORATIONDBA HYDRAULIC VALVE DIV |
| 311-221 1-4SS | 86768 | TELEDYNE INDUSTRIES INCTELEDYNE FLUID SYSTEMS REPUBLIC |
Technical Data | NSN 4820-00-045-3482
| Characteristic | Specifications |
|---|---|
| FLOW STYLE | THREE-WAY ONE PORT BOTTOM OUTLET 360 DEGREE PLUG TURN |
| VALVE OPERATION METHOD | MANUAL |
| MOUNTING FACILITY | BRACKET |
| FEATURES PROVIDED | NONADJUSTABLE ROTATION |
