Part Details | FLUID PRESSURE REGULATING VALVE
4820-00-138-5432 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 1L350, 9208421, 920842-1, 4820-00-138-5432, 00-138-5432, 4820001385432, 001385432
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | AUG 09, 1971 | 00-138-5432 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU
SWIVEL NUT, FLARE

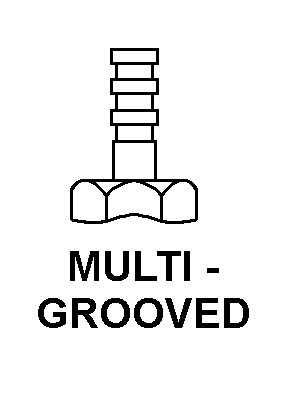

MULTI-GROOVED
SWIVEL NUT, FLARE
MULTI-GROOVED
SWIVEL NUT, FLARE
MULTI-GROOVED
SWIVEL NUT, FLARE
MULTI-GROOVED
Cross Reference | NSN 4820-00-138-5432
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1L350 | 96355 | MATHESON CODIV OF G D SEARLE MEDICAL PRODUCTS |
| 920842-1 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
Technical Data | NSN 4820-00-138-5432
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| MAXIMUM INLET PRESSURE RATING | 2400.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | +3.0 TO +80.0 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| FURNISHED ITEMS | CYLINDER GAGE AND DELIVERY GAGE |
| SEAT MATERIAL | RUBBER, CHLOROPRENE |
| STEM MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| OUTSIDE SURFACE TREATMENT | LACQUER |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | 0 SWIVEL NUT, FLARE |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.830 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 13 TO 16-20 UNEF |
| FIRST END THREAD CLASS | 2B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |
| SECOND END STYLE DESIGNATOR | MULTI-GROOVED |
| SECOND END OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.438 INCHES NOMINAL |
| BODY STYLE | 2 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | HYDROGEN |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| MANUAL CONTROL METHOD | TEE HANDLE |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | DIAPHRAGM |
