Part Details | SCREW STEM SHUTOFF COCK
4820-00-139-3199 A compact two-way type of valve mechanism having a one piece body and seat and a one piece stem and disk. It has no bonnet, and is not used for fine control of flow. It is used extensively in the automotive field.
Alternate Parts: 129411, 129411, 129402, 4820-00-139-3199, 00-139-3199, 4820001393199, 001393199
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | DEC 06, 1972 | 00-139-3199 | 16990 ( COCK, SHUTOFF, SCREW STEM ) |
REFERENCE DRAWINGS & PICTURES

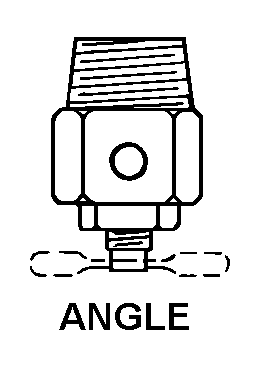

ANGLE
Cross Reference | NSN 4820-00-139-3199
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 129411 | 86035 | CALGON CORP |
| 129411 | 24821 | ROSEMOUNT ANALYTICAL, INC.DIV PROCESS ANALYTICAL DIVISION |
| 129402 | 24821 | ROSEMOUNT ANALYTICAL, INC.DIV PROCESS ANALYTICAL DIVISION |
Technical Data | NSN 4820-00-139-3199
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE |
| FLOW CONTROL DEVICE | BALL |
| VALVE OPERATION METHOD | MANUAL |
