Part Details | FLUID PRESSURE REGULATING VALVE
4820-00-148-4993 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 825479, 4820-00-148-4993, 00-148-4993, 4820001484993, 001484993
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | SEP 29, 1971 | 00-148-4993 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
CROSS

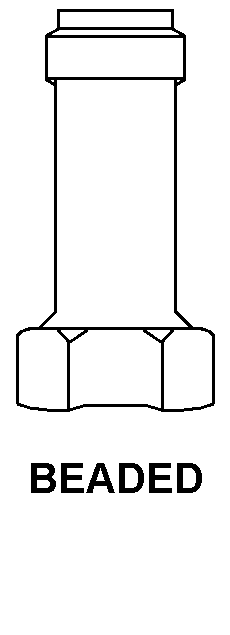

BEADED
BEADED
BEADED
BEADED
Cross Reference | NSN 4820-00-148-4993
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 825479 | 21292 | KELSEY-HAYES CO FABCO DIV |
Technical Data | NSN 4820-00-148-4993
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY |
| FILTER | NOT INCLUDED |
| SEAT MATERIAL | STEEL |
| STEM MATERIAL | STEEL |
| FLOW CONTROL DEVICE | STEM AND INTEGRAL DISK |
| FLOW CONTROL DEVICE MATERIAL | STEEL |
| OUTSIDE SURFACE TREATMENT | ANODIZED |
| END CONNECTION QUANTITY | 4 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |
| FIRST END STYLE DESIGNATOR | BEADED |
| FIRST END OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.375 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| FOURTH END RELATIONSHIP WITH PRECEDING ENDS | NOT IDENTICAL WITH FIRST, SECOND OR THIRD END |
| FOURTH END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |
| FOURTH END STYLE DESIGNATOR | BEADED |
| FOURTH END OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.250 INCHES NOMINAL |
| BODY STYLE | 1 CROSS |
| CENTER TO CENTER DISTANCE | 0.938 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | HYDROCARBON FUELS AND OILS |
| MOUNTING FACILITY | INTERNAL THREAD |
| REGULATION TYPE | AUTOMATIC DOUBLE STAGE |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
