Part Details | FLAT VALVE DIAPHRAGM
4820-00-148-5511 An item in the form of one or more thin flexible sheets normally designed to form a tight seal between chambers of a valve, and to transmit motion to a valve disk either directly or through a mechanical linkage. The surface of the item(s) may not be formed or molded to have a beaded or rolled edge, ribs, or any other raised surfaces. The item may contain bolt holes and/or a center hole. Excludes DIAPHRAGM, VALVE, SPECIAL SHAPED and GASKET.
Alternate Parts: BM2449B10, 1355, B352480, B3524-80, BM2449B10, B3524080, B-3524-080, 1355, RC330121694PC1855, RC330-12-1694PC1855, RC32091625PC1855, RC320-9-1625PC1855, RC32091623PC1855, RC320-9-1623PC1855, RC32091622PC1820, RC320-9-1622PC1820, RC244161617PC1855, RC244-16-1617PC1855, RC230141650PC1855, RC230-14-1650PC1855, 1855, RC340161687PC1855, RC340-16-1687PC1855, 1855, 4SC1022, 4820-00-148-5511, 00-148-5511, 4820001485511, 001485511
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1961 | 00-148-5511 | 60396 ( DIAPHRAGM, VALVE, FLAT ) |

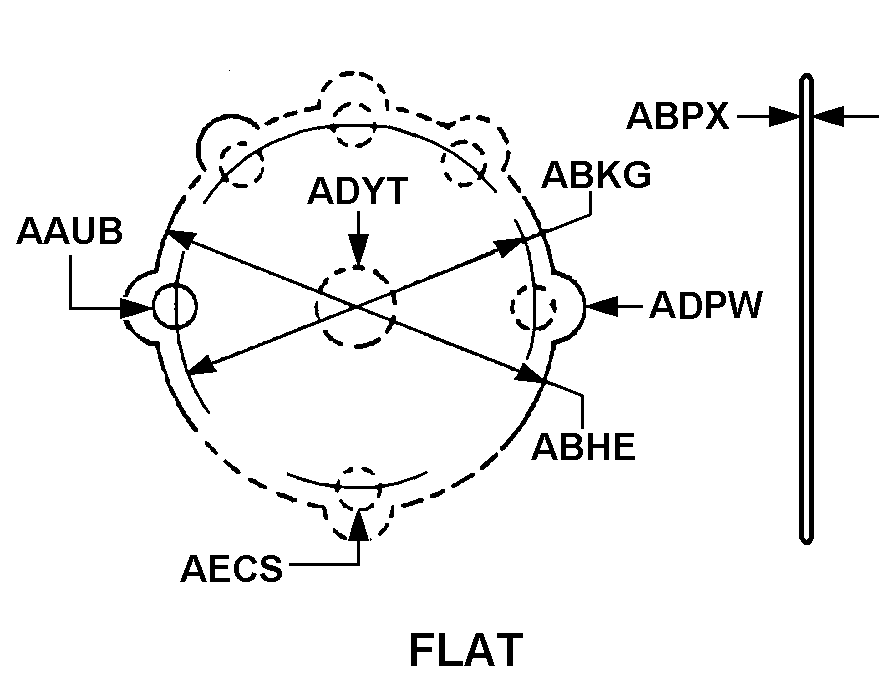

REFERENCE DRAWINGS & PICTURES
FLAT
Cross Reference | NSN 4820-00-148-5511
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BM2449B10 | 55509 | COOPER CAMERON CORPAJAX-SUPERIOR DIV |
| 1355 | 55509 | COOPER CAMERON CORPAJAX-SUPERIOR DIV |
| B3524-80 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| BM2449B10 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| B-3524-080 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| 1355 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| RC330-12-1694PC1855 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTECINDUSTRIES INC |
| RC320-9-1625PC1855 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTECINDUSTRIES INC |
| RC320-9-1623PC1855 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTECINDUSTRIES INC |
| RC320-9-1622PC1820 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTECINDUSTRIES INC |
| RC244-16-1617PC1855 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTECINDUSTRIES INC |
| RC230-14-1650PC1855 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTECINDUSTRIES INC |
| 1855 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTECINDUSTRIES INC |
| RC340-16-1687PC1855 | 49576 | QUINCY COMPRESSOR DIVISION OF COLTECINDUSTRIES INC |
| 1855 | 95879 | STEWART-WARNER ALEMITE CORP |
| 4SC1022 | 57217 | STRIEGEL SUPPLY INC |
Technical Data | NSN 4820-00-148-5511
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| STYLE DESIGNATOR | FLAT |
| HOLE DIAMETER | 0.284 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.000 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 2.678 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.090 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.112 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 6 |
| SPECIAL FEATURES | ADDITIONAL MATERIAL: FIBER |
