Part Details | TEMPERATURE REGULATING VALVE
4820-00-148-8593 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.
Alternate Parts: 15M123, TCG6CC, 4820-00-148-8593, 00-148-8593, 4820001488593, 001488593
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAY 06, 1973 | 00-148-8593 | 05492 ( VALVE, REGULATING, TEMPERATURE ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU

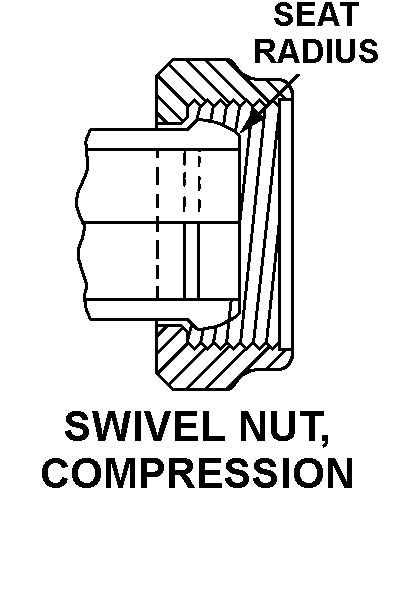

SWIVEL NUT, COMPRESSION
SWIVEL NUT, COMPRESSION
SWIVEL NUT, COMPRESSION
SWIVEL NUT, COMPRESSION
Cross Reference | NSN 4820-00-148-8593
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15M123 | 98437 | ELLIS & WATTS INTERNATIONAL, LLC |
| TCG6CC | 71342 | IMI CASH VALVE INC |
Technical Data | NSN 4820-00-148-8593
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| TEMP RATING | 50.0 DEG FAHRENHEIT MINIMUM AND 90.0 DEG FAHRENHEIT MAXIMUM |
| FLOW CONTROL DEVICE | BULB |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | SWIVEL NUT, COMPRESSION |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1-11-1 TO 2 NPT |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | STRAIGHT THRU |
| TWO-WAY VALVE ACTION | REVERSE ACTING |
| THERMOSTATIC ELEMENT | LIQUID IMMERSION TYPE |
| CAPILLARY TUBE LENGTH | 72.000 INCHES NOMINAL |
| BULB LENGTH | 17.875 INCHES NOMINAL |
| BULB DIAMETER | 0.875 INCHES NOMINAL |
