Part Details | GASEOUS PRODUCTS PRESSURE EQUALIZING VALVE
4820-00-148-8616 A valve consisting of a single deadweight loaded disk, or two deadweight loaded disks each with a seperate seat. It is specifically designed for the relief of small pressure and vacuum conditions within a tank or other container to or from the atmosphere. The center of a single deadweight loaded disk may contain a spring loaded disk forming an additional seat or aperture. It may be spring loaded and/or equipped with a manual unloader on either the pressure or vacuum side. Exclude VALVE, VACUUM BREAKING.
Alternate Parts: B51019, B51019, B-51019, 71062, 710-62, PRV300, PRV-300, WMP730R7, WMP730R-7, 4820-00-148-8616, 00-148-8616, 4820001488616, 001488616
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUN 13, 1973 | 00-148-8616 | 10958 ( VALVE, PRESSURE EQUALIZING, GASEOUS PRODUCTS ) |
REFERENCE DRAWINGS & PICTURES
SINGLE CONNECTION, STRAIGHT FLOW

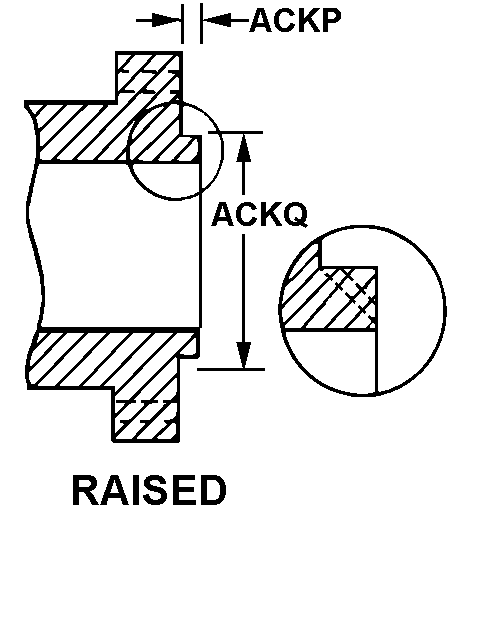

RAISED
ROUND W/ BOLT HOLES
RAISED
ROUND W/ BOLT HOLES
RAISED
ROUND W/ BOLT HOLES
RAISED
ROUND W/ BOLT HOLES
Cross Reference | NSN 4820-00-148-8616
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B51019 | K1020 | MBDA UK LTD |
| B-51019 | 08407 | MIRADA RESEARCH & MANUFACTURING,INC. |
| 710-62 | 08588 | NATIONAL DISTILLERS AND CHEMICALCORP BRIDGEPORT BRASS CO DIV |
| PRV-300 | 17673 | SHEPARD AIRTRONICS INC |
| WMP730R-7 | 1GTC0 | WING INFLATABLES, INC. |
Technical Data | NSN 4820-00-148-8616
| Characteristic | Specifications |
|---|---|
| BODY STYLE | SINGLE CONNECTION, STRAIGHT FLOW |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE | F ANY ACCEPTABLE |
| FLOW CONTROL DEVICE MATERIAL | PLASTIC |
| END CONNECTION QUANTITY | 1 |
| FIRST END CONNECTION TYPE | RAISED FACE FLANGE |
| FIRST END STYLE DESIGNATOR | RAISED |
| FIRST END RAISED FACE HEIGHT | 0.475 INCHES NOMINAL |
| FIRST END RAISED FACE DIAMETER | 1.625 INCHES NOMINAL |
| FIRST END FLANGE SHAPE STYLE | A ROUND W/ BOLT HOLES |
| FIRST END FLANGE OUTSIDE DIAMETER | 3.469 INCHES NOMINAL |
| FIRST END FLANGE THICKNESS | 0.075 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | AIR |
| VALVE VENTING DESIGN TYPE | ATMOSPHERIC |
| DISK LOADING METHOD | SPRING |
| SPECIAL FEATURES | FLANGE IS MOLDED RUBBER |
