Part Details | FOOT VALVE
4820-00-153-7239 A valve used on the free end of a suction line permitting flow in only one direction. It is always equipped with a strainer at the inlet end. See also VALVE, CHECK.
Alternate Parts: 90150, 35130, 35130, 90151, 4820-00-153-7239, 00-153-7239, 4820001537239, 001537239
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | OCT 10, 1971 | 00-153-7239 | 13762 ( VALVE, FOOT ) |
REFERENCE DRAWINGS & PICTURES

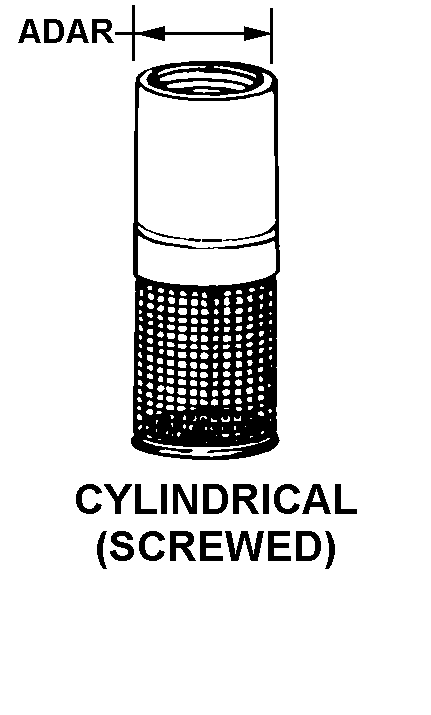

CYLINDRICAL (SCREWED)
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
Cross Reference | NSN 4820-00-153-7239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 90150 | 62940 | COVERT MANUFACTURING, INC.DBA COVERT |
| 35130 | 62940 | COVERT MANUFACTURING, INC.DBA COVERT |
| 35130 | 96046 | CRANE PUMPS & SYSTEMS, INC. |
| 90151 | 1G947 | JACUZZI BROSSUB OF KIDDE INC |
Technical Data | NSN 4820-00-153-7239
| Characteristic | Specifications |
|---|---|
| BODY STYLE | CYLINDRICAL (SCREWED) |
| BODY MATERIAL | STEEL |
| OUTSIDE SURFACE TREATMENT | PAINT, MIL-P-1265 |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | ANY ACCEPTABLE |
| FLOW CONTROL DEVICE MATERIAL | RUBBER |
| END CONNECTION QUANTITY | 1 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | 1 SWIVEL NUT, FLARE |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| MEDIA FOR WHICH DESIGNED | WATER, OIL OR GAS |
| FURNISHED ITEMS | ADAPTER AND FILTER SCREEN |
