Part Details | VALVE SEAT
4820-00-158-2585 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.
Alternate Parts: 7168, 071688, 4820-00-158-2585, 00-158-2585, 4820001582585, 001582585
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | OCT 24, 1971 | 00-158-2585 | 22113 ( SEAT, VALVE ) |

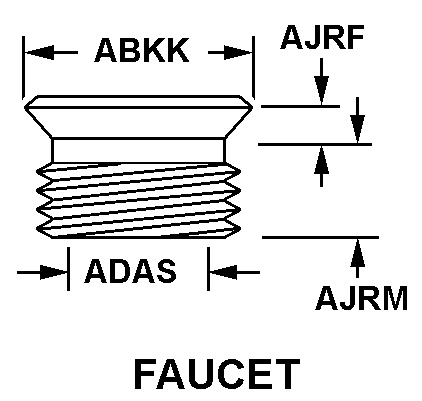

REFERENCE DRAWINGS & PICTURES
FAUCET
Cross Reference | NSN 4820-00-158-2585
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7168 | 80850 | INTERLINE BRANDS, INC.DBA J. A. SEXAUER |
| 071688 | 80850 | INTERLINE BRANDS, INC.DBA J. A. SEXAUER |
Technical Data | NSN 4820-00-158-2585
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FAUCET |
| SEATING SURFACE SHAPE | ANGULAR |
| SPECIAL FEATURES | MANGANESE-SILICONE ALLOY; .500 IN. DIA; 20 THD PER INCH; SQUARE BROACHING; USED ON BARNES MODEL BA-2 |
