Part Details | EXPANSION VALVE
4820-00-161-7544 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: TER25FW, TER25F, 4820-00-161-7544, 00-161-7544, 4820001617544, 001617544
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | OCT 24, 1971 | 00-161-7544 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

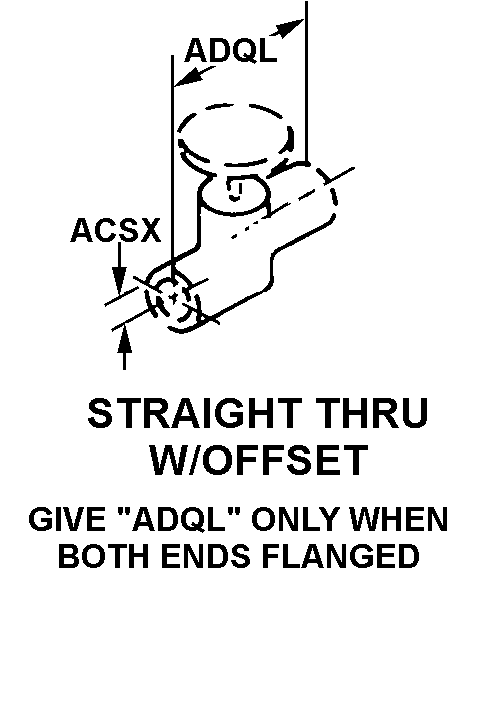

STRAIGHT THRU W/ OFFSET GIVE "ADQL" ONLY WHEN BOTH ENDS FLANGED
SOCKET
SOCKET
SOCKET
SOCKET
Cross Reference | NSN 4820-00-161-7544
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TER25FW | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| TER25F | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
Technical Data | NSN 4820-00-161-7544
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| BODY STYLE | STRAIGHT THRU W/ OFFSET GIVE "ADQL" ONLY WHEN BOTH ENDS FLANGED |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 300.0 |
| VALVE EQUALIZER LOCATION | EXTERNAL |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| FLOW CONTROL DEVICE | R ANY ACCEPTABLE |
| OFFSET DISTANCE | 1.500 INCHES NOMINAL |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | SOCKET |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.875 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | SOCKET |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.125 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | LOW |
| BULB MEDIA TYPE | REFRIGERANT 12 |
| CAPILLARY TUBE LENGTH | 120.000 INCHES NOMINAL |
| BULB MOUNTING METHOD | WELL |
| VALVE EQUALIZER CONNECTION TYPE | FLARED TUBE |
| VALVE EQUALIZER CONNECTION DIAMETER | 0.250 INCHES NOMINAL |
