Part Details | VALVE SEAT REFACING PILOT
4910-01-492-5359 A device which, when inserted into the bore of a valve guide on an internal combustion engine, serves as a center post for aligning and guiding the grinding stone and/or reamer of a valve seat refacer.
Alternate Parts: PEM1206.0, PEM120-6.0, 4910-01-492-5359, 01-492-5359, 4910014925359, 014925359
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | DEC 03, 2001 | 01-492-5359 | 11030 ( PILOT, VALVE SEAT REFACING ) |

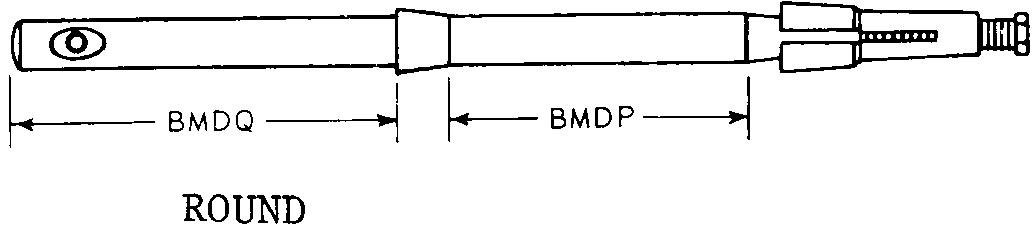

REFERENCE DRAWINGS & PICTURES
ROUND
Cross Reference | NSN 4910-01-492-5359
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PEM120-6.0 | 13484 | NEWAY MANUFACTURING, INC |
Technical Data | NSN 4910-01-492-5359
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | EXPANDING |
| EXPANSION RANGE | +0.297 TO +0.375 INCHES |
| STYLE DESIGNATOR | ROUND |
