Part Details | FLUID FILTER
4930-01-186-2538 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.
Alternate Parts: 83732425006773867110, 837324-2500-677386-7110, 83732425006773865110, 837324-2500-677386-5110, 4930-01-186-2538, 01-186-2538, 4930011862538, 011862538
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | AUG 08, 1984 | 01-186-2538 | 32622 ( FILTER, FLUID ) |
REFERENCE DRAWINGS & PICTURES

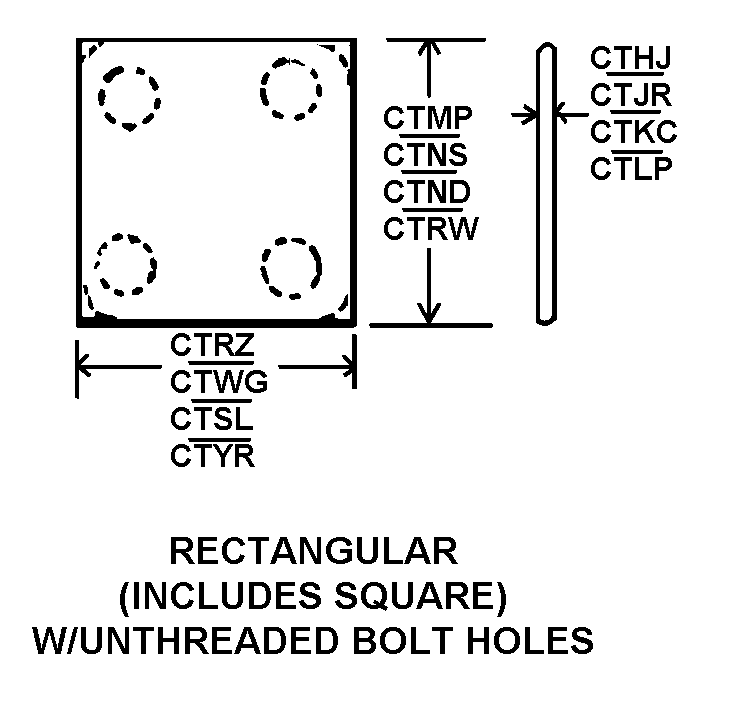

RECTANGULAR W/UNTHREADED BOLT HOLES
RECTANGULAR W/UNTHREADED BOLT HOLES
RECTANGULAR W/UNTHREADED BOLT HOLES
RECTANGULAR W/UNTHREADED BOLT HOLES
PLAIN
PLAIN
PLAIN
PLAIN
Y STRAINER W/BLOW-OFF PLUG
Cross Reference | NSN 4930-01-186-2538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 837324-2500-677386-7110 | 92863 | MARVEL ENGINEERING COMPANY INC |
| 837324-2500-677386-5110 | 92863 | MARVEL ENGINEERING COMPANY INC |
Technical Data | NSN 4930-01-186-2538
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4 Y STRAINER W/BLOW-OFF PLUG |
| BODY LENGTH | 6.500 INCHES NOMINAL |
| BODY HEIGHT | 24.310 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET | 20.180 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CONNECTIONS | 17.180 INCHES NOMINAL |
| ANGLE BETWEEN CONNECTIONS | 180.0 DEGREES NOMINAL |
| DESIGN TYPE | REUSABLE |
| FILTERING ELEMENT QUANTITY | 2 |
| FILTRATION RATING IN MICRONS | 10.0 NOMINAL |
| MEDIA FOR WHICH DESIGNED | Y ANY ACCEPTABLE |
| MAXIMUM OPERATING PRESSURE | 2000.0 POUNDS PER SQUARE INCH |
| FIRST INTAKE FLANGE SHAPE STYLE | RECTANGULAR W/UNTHREADED BOLT HOLES |
| FIRST INTAKE FLANGE THICKNESS | 3.000 INCHES NOMINAL |
| FIRST INTAKE FLANGE LENGTH | 6.500 INCHES NOMINAL |
| FIRST INTAKE FLANGE WIDTH | 6.000 INCHES NOMINAL |
| FIRST INTAKE FLANGE FACE STYLE | PLAIN |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | NOT IDENTICAL |
| FIRST DISCHARGE FLANGE SHAPE STYLE | RECTANGULAR W/UNTHREADED BOLT HOLES |
| FIRST DISCHARGE FLANGE THICKNESS | 3.000 INCHES NOMINAL |
| FIRST DISCHARGE FLANGE LENGTH | 6.500 INCHES NOMINAL |
| FIRST DISCHARGE FLANGE WIDTH | 6.000 INCHES NOMINAL |
| FIRST DISCHARGE FLANGE FACE STYLE | PLAIN |
| MOUNTING HOLE QUANTITY | 4 |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 5.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.500 INCHES NOMINAL |
| FILTERING SYSTEM FOR WHICH DESIGNED | BY-PASS FLOW |
