Part Details | PLIERS
5110-00-867-8149 Refer to Reference Drawing Group A. See also PLIERS (as modified).
Alternate Parts: CG5627, EC54, 5110-00-867-8149, 00-867-8149, 5110008678149, 008678149
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1960 | 00-867-8149 | 03978 ( PLIERS ) |

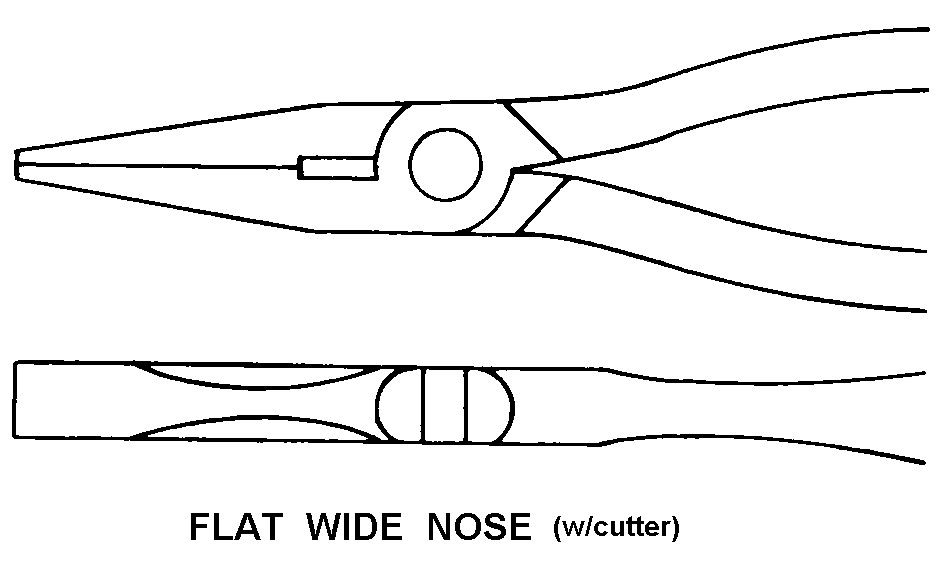

REFERENCE DRAWINGS & PICTURES
FLAT WIDE NOSE (W/ CUTTER)
Cross Reference | NSN 5110-00-867-8149
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CG5627 | 26281 | DRESSER INDUSTRIES INC HAND TOOL DIV |
| EC54 | 08125 | U S DEPT OF TRANSPORTATION FEDERALAVIATION ADMINISTRATION |
Technical Data | NSN 5110-00-867-8149
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 6.125 INCHES NOMINAL |
| PLIERS STYLE DESIGNATOR | FLAT WIDE NOSE (W/ CUTTER) |
| INSULATED HANDLE | NOT PROVIDED |
| SPECIAL FEATURES | TRANSVERSE END CUTTER |
