Part Details | METAL CUTTING HAND SAW
5110-01-192-3838 A metal cutting handsaw with a closed grip handle fastened at the wide end of a straight back blade. The unset cutting teeth on the blade are designed for cutting metal and are milled straight across.
Alternate Parts: HS12, 5110-01-192-3838, 01-192-3838, 5110011923838, 011923838
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | OCT 20, 1984 | 01-192-3838 | 10883 ( SAW, HAND, METAL CUTTING ) |
REFERENCE DRAWINGS & PICTURES

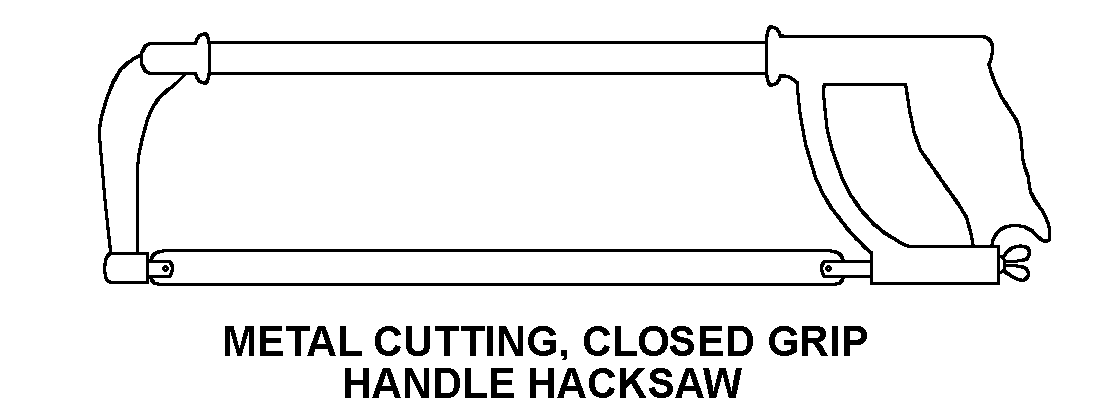

METAL CUTTING, CLOSED GRIP HANDLE HACKSAW
Cross Reference | NSN 5110-01-192-3838
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HS12 | 55719 | IDSC HOLDINGS LLCDBA SNAP-ON INDUSTRIAL |
Technical Data | NSN 5110-01-192-3838
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | METAL CUTTING, CLOSED GRIP HANDLE HACKSAW |
| OVERALL LENGTH | 16.000 INCHES NOMINAL |
| BLADE LENGTH | 12.000 INCHES NOMINAL |
| FEATURES PROVIDED | BLADE STORAGE IN HANDLE |
| SPECIAL FEATURES | FOR FLUSH OR 90 DEG CUTTING |
