Part Details | ABRASIVE WHEEL
5130-00-551-2401 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.
Alternate Parts: 18367, 5130-00-551-2401, 00-551-2401, 5130005512401, 005512401
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | OCT 20, 1974 | 00-551-2401 | 02613 ( WHEEL, ABRASIVE ) |
REFERENCE DRAWINGS & PICTURES

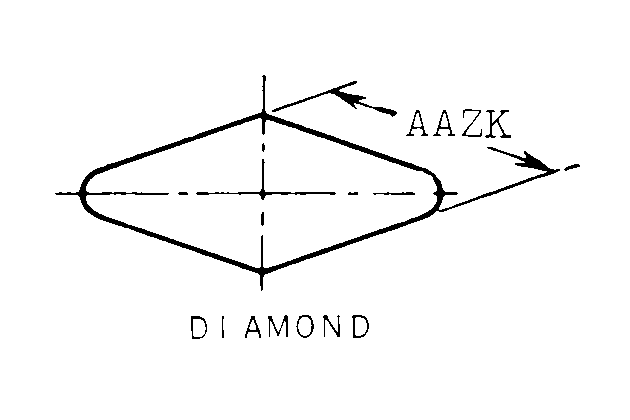

DIAMOND
STRAIGHT
Cross Reference | NSN 5130-00-551-2401
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18367 | 55111 | SKIL CORP |
Technical Data | NSN 5130-00-551-2401
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE |
| USAGE DESIGN | METAL WORKING |
| WHEEL STYLE | STRAIGHT |
| HOLE DIAMETER | 0.625 INCHES NOMINAL |
| OVERALL THICKNESS | 0.125 INCHES NOMINAL |
| WHEEL DIAMETER | 7.250 INCHES NOMINAL |
| MOUNTING METHOD | |
| MOUNTING OPENING SHAPE STYLE | DIAMOND |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| BINDER MATERIAL | FIBER |
