Part Details | PORTABLE ELECTRIC DRILL
5130-00-807-3009 An electric powered hand-held rotary tool, having either a drill chuck or a morse taper socket. It may include drill accessories such as guide clamps, bushings and the like.
Alternate Parts: WD661, W-D-661, 5130008073009, 5130-00-807-3009, WD661 TY3CLBST2, W-D-661 TY3CLBST2, 5130-00-807-3009, 00-807-3009, 5130008073009, 008073009
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1962 | 00-807-3009 | 11249 ( DRILL, ELECTRIC, PORTABLE ) |
REFERENCE DRAWINGS & PICTURES

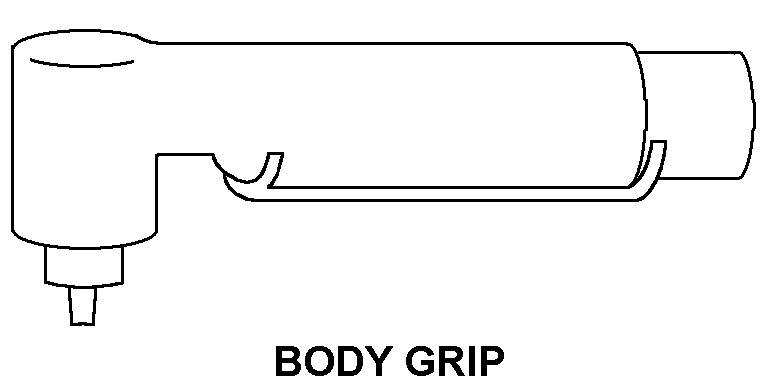

BODY GRIP
Cross Reference | NSN 5130-00-807-3009
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| W-D-661 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5130-00-807-3009 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| W-D-661 TY3CLBST2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5130-00-807-3009
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | B$C |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| ALTERNATING CURRENT RATING IN AMPS | 1.3 |
| NO LOAD SPEED IN RPM | 2500.0 NOMINAL |
| ANGLE | 90.0 DEGREES |
| DRIVE FOR WHICH DESIGNED | ANGULAR |
| DRIVE END TYPE | KEYED JAW CHUCK |
| PLUG CONNECTOR TYPE | 3-PRONG |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| CORD LENGTH | 8.000 FEET MINIMUM |
| HANDLE STYLE | BODY GRIP |
| SIZE DESIGNATOR | 0.250 INCHES NOMINAL |
| FEATURES PROVIDED | NONREVERSIBLE |
| SPECIAL FEATURES | 1.3 AMP MIN; PROVIDED WITH DOUBLE INSULATION OR 3-WIRE GROUNDED PLUG |
| SUPPLEMENTARY FEATURES | CARRYING CASE PROVIDED |
