Part Details | PORTABLE ELECTRIC DRILL
5130-00-830-4049 An electric powered hand-held rotary tool, having either a drill chuck or a morse taper socket. It may include drill accessories such as guide clamps, bushings and the like.
Alternate Parts: D39570, D39-570, 9074559, 5130-00-830-4049, 00-830-4049, 5130008304049, 008304049
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1962 | 00-830-4049 | 11249 ( DRILL, ELECTRIC, PORTABLE ) |
REFERENCE DRAWINGS & PICTURES

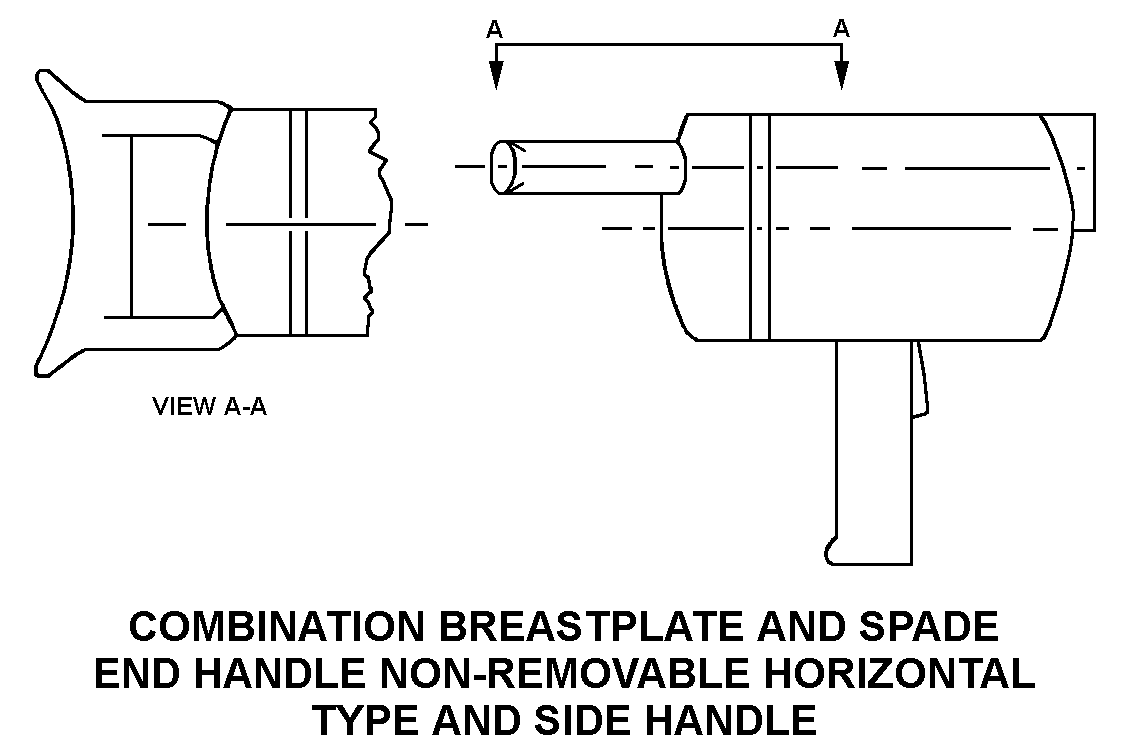

COMBINATION BREASTPLATE AND SPADE END HANDLE NON-REMOVABLE HORIZONTAL TYPE AND SIDE HANDLE
Cross Reference | NSN 5130-00-830-4049
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D39-570 | 30418 | THOR POWER TOOL COSUB OF STEWART-WARNER CO |
| 9074559 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5130-00-830-4049
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | AC |
| VOLTAGE RATING | 208.000 VOLTS NOMINAL |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| PHASE | THREE |
| NO LOAD SPEED IN RPM | 570.0 NOMINAL |
| DRIVE FOR WHICH DESIGNED | STRAIGHT |
| DRIVE END TYPE | KEYED JAW CHUCK |
| HANDLE STYLE | COMBINATION BREASTPLATE AND SPADE END HANDLE NON-REMOVABLE HORIZONTAL TYPE AND SIDE HANDLE |
| SIZE DESIGNATOR | 0.625 INCHES NOMINAL |
| FEATURES PROVIDED | NONREVERSIBLE |
