Part Details | ROTARY END WIRE BRUSH
5130-01-230-1497 A brush having a circular wire fill section secured in a tubular back, and a 1/4 inch round shank drive. The fill material extends parallel or at right angles to the axis of its shank. It is used in a rotary, power-operated device for carbon removing, cleaning, smoothing and the like. See also BRUSH, WIRE, ROTARY CUP; and BRUSH, WIRE, ROTARY WHEEL.
Alternate Parts: 98H72TY, 98-H-72-TY, 30607, 5130-01-230-1497, 01-230-1497, 5130012301497, 012301497
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | APR 10, 1986 | 01-230-1497 | 10086 ( BRUSH, WIRE, ROTARY END ) |
REFERENCE DRAWINGS & PICTURES

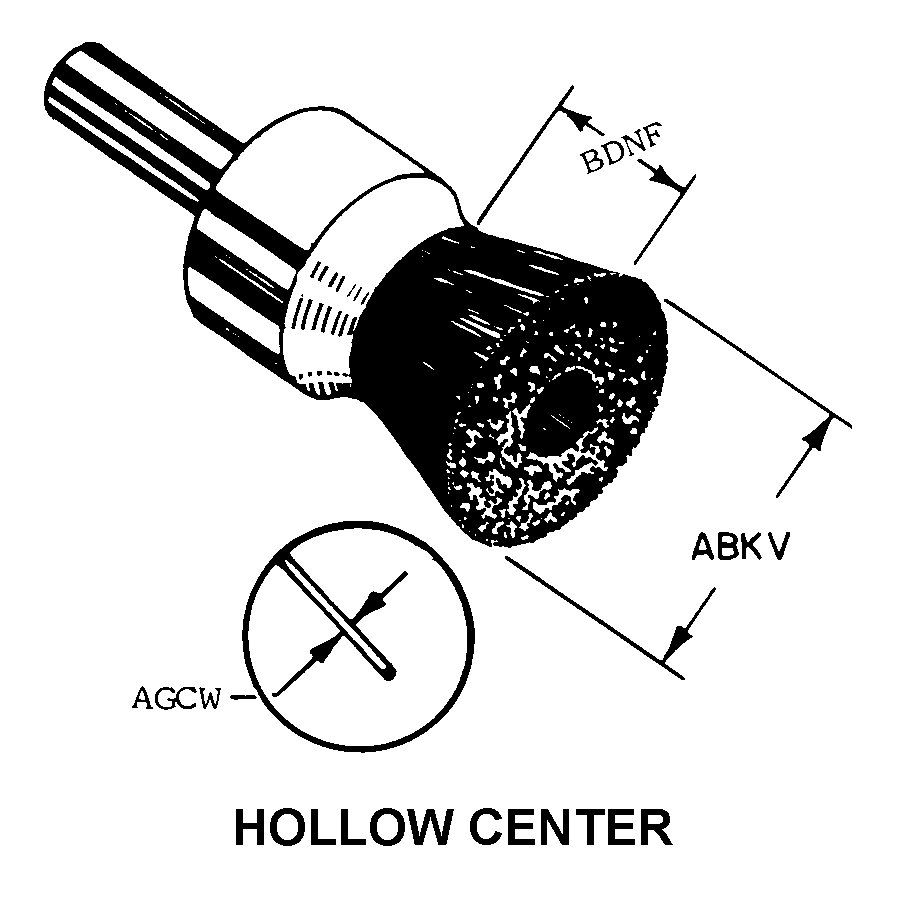

HOLLOW CENTER
Cross Reference | NSN 5130-01-230-1497
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 98-H-72-TY | 45092 | JASON INCORPORATEDDBA OSBORN INTERNATIONAL A UNIT OF |
| 30607 | 45092 | JASON INCORPORATEDDBA OSBORN INTERNATIONAL A UNIT OF |
Technical Data | NSN 5130-01-230-1497
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOLLOW CENTER |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| TRIM LENGTH | 1.000 INCHES NOMINAL |
| WIRE DIAMETER | 0.0104 INCHES NOMINAL |
| FILL MATERIAL | STEEL |
| WIRE FILL TYPE | C ANY ACCEPTABLE |
| MAXIMUM SPEED RATING IN RPM | 15000.0 |
| SPECIAL FEATURES | CARBON STEEL WIRE |
