Part Details | SOCKET WRENCH SCREWDRIVER ATTACHMENT
5130-01-367-3438 An attachment designed to fit over the square external drive end of a HANDLE, SOCKET WRENCH; WRENCH, TORQUE; and the like consisting of one or two-piece configuration having a screw driving tip on one end. Excludes BIT, SCREWDRIVER.
Alternate Parts: PSTX55E, PSTX55, 5130-01-367-3438, 01-367-3438, 5130013673438, 013673438
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | NOV 10, 1992 | 01-367-3438 | 52399 ( SCREWDRIVER ATTACHMENT, SOCKET WRENCH ) |

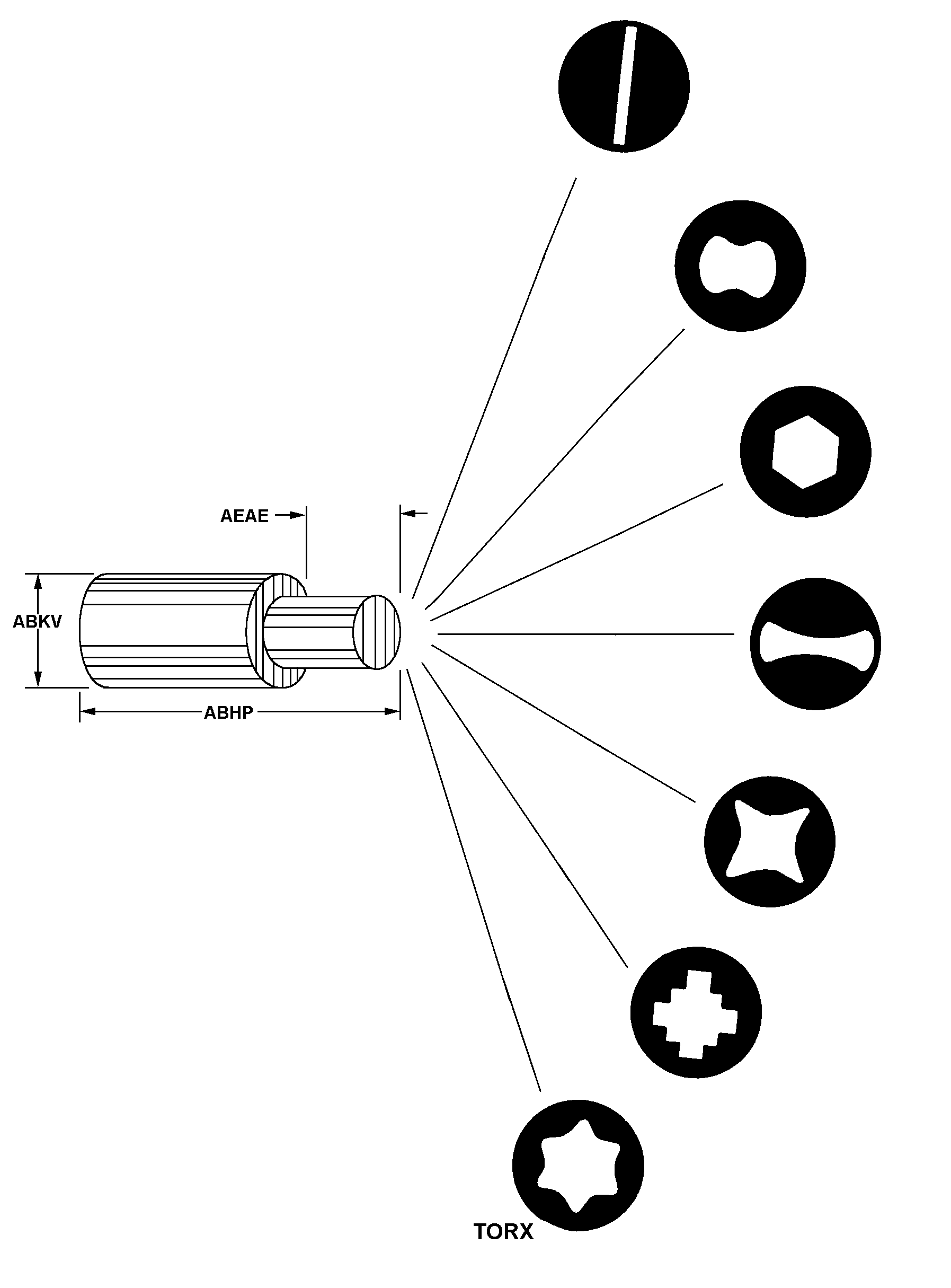

REFERENCE DRAWINGS & PICTURES
TORX
Cross Reference | NSN 5130-01-367-3438
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PSTX55E | 55719 | IDSC HOLDINGS LLCDBA SNAP-ON INDUSTRIAL |
| PSTX55 | 55719 | IDSC HOLDINGS LLCDBA SNAP-ON INDUSTRIAL |
Technical Data | NSN 5130-01-367-3438
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TORX |
| OVERALL LENGTH | 2.438 INCHES NOMINAL |
| TIP SIZE DESIGNATION | T55 |
| FEATURES PROVIDED | POWER TOOL |
