Part Details | SETSCREW
5305-00-025-8017 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Alternate Parts: C63506, C63506, C63506, 5305-00-025-8017, 00-025-8017, 5305000258017, 000258017
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-025-8017 | 06672 ( SETSCREW ) |
REFERENCE DRAWINGS & PICTURES
CROWNED HEXAGON

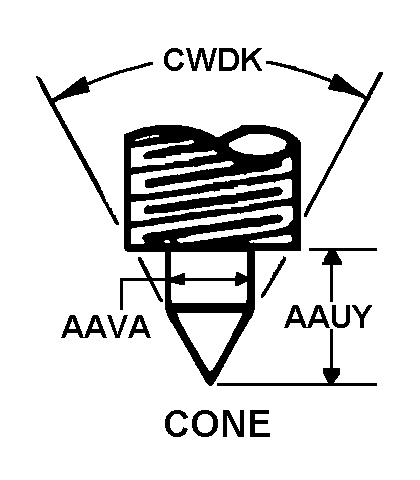

CONE
CROSS RECESS TYPE 1
Cross Reference | NSN 5305-00-025-8017
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C63506 | 58133 | ALLEN R C CO INCCASH REGISTER DIV |
| C63506 | 06275 | ALLEN R C INSTRUMENTS INC |
| C63506 | 08AF1 | KELLY MANUFACTURING COMPANY |
Technical Data | NSN 5305-00-025-8017
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.062 INCHES MINIMUM AND 0.104 INCHES MAXIMUM |
| FASTENER LENGTH | 0.156 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |
| HEAD STYLE | 9 CROWNED HEXAGON |
| HEAD DIAMETER | 0.156 INCHES NOMINAL |
| HEAD HEIGHT | 0.047 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 |
| POINT STYLE | CONE |
| POINT LENGTH | 0.068 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| POINT DIAMETER | 0.060 INCHES NOMINAL |
| POINT CHAMFER ANGLE | 40.0 DEGREES NOMINAL |
