Part Details | U BOLT
5306-00-038-1545 An externally threaded fastener bent approximately 180 degrees (3.141 radians) in the shape of the letter U and with both ends threaded.
Alternate Parts: 5306000381545, 11643473, 5306-00-038-1545, 00-038-1545, 5306000381545, 000381545
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 10, 1972 | 00-038-1545 | 06665 ( BOLT, U ) |
REFERENCE DRAWINGS & PICTURES

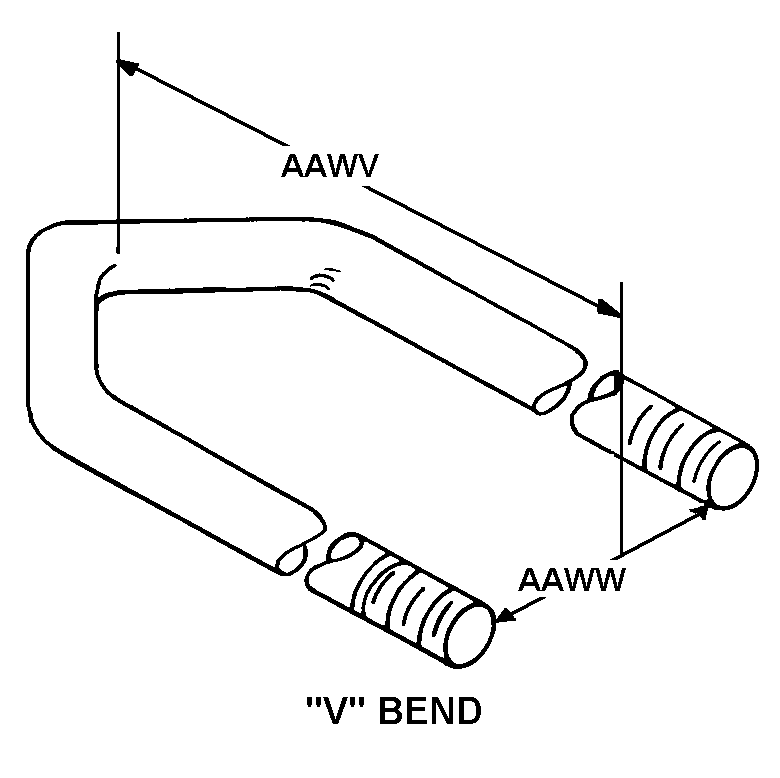

V BEND
Cross Reference | NSN 5306-00-038-1545
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5306000381545 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 11643473 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5306-00-038-1545
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.250 INCHES MINIMUM |
| STYLE DESIGNATOR | "V" BEND |
| DISTANCE FROM INSIDE CENTER OF BEND TO BOLT END | 7.810 INCHES NOMINAL |
| INSIDE DISTANCE BETWEEN SHANKS | 1.250 INCHES NOMINAL |
