5306-00-050-5856 A cylindrical device having a head, eye or hook; similar to a BOLT, MACHINE; BOLT, EYE or BOLT, HOOK, and the like, but without threads, and normally intended for a subsequent threading operation.
Alternate Parts: 505856, 5320000505856, 5306-00-050-5856, 00-050-5856, 5306000505856, 000505856
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-050-5856 | 01846 ( BOLT BLANK ) |
REFERENCE DRAWINGS & PICTURES

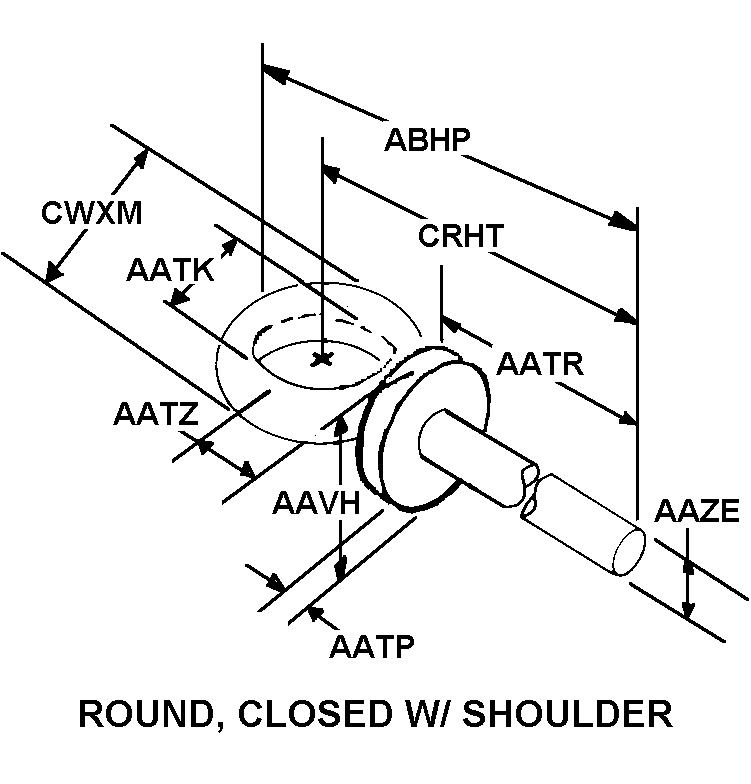

ROUND, CLOSED W/SHOULDER
Cross Reference | NSN 5306-00-050-5856
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 505856 | 21450 | ARMY WEAPONS COMMANDATTN AMSWE-REE-S |
| 5320000505856 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
Technical Data | NSN 5306-00-050-5856
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND, CLOSED W/SHOULDER |
| EYE INSIDE DIAMETER | 0.380 INCHES NOMINAL |
| SHANK LENGTH | 0.469 INCHES NOMINAL |
| EYE STOCK DIAMETER | 0.212 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.515 INCHES NOMINAL |
| SHANK DIAMETER | 0.264 INCHES NOMINAL |
| OVERALL LENGTH | 1.355 INCHES NOMINAL |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 0.978 INCHES NOMINAL |
| EYE OUTSIDE WIDTH | 0.750 INCHES NOMINAL |
