Part Details | BOLT BLANK
5306-00-110-5655 A cylindrical device having a head, eye or hook; similar to a BOLT, MACHINE; BOLT, EYE or BOLT, HOOK, and the like, but without threads, and normally intended for a subsequent threading operation.
Alternate Parts: 112402, 5306-00-110-5655, 00-110-5655, 5306001105655, 001105655
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 09, 1968 | 00-110-5655 | 01846 ( BOLT BLANK ) |
REFERENCE DRAWINGS & PICTURES

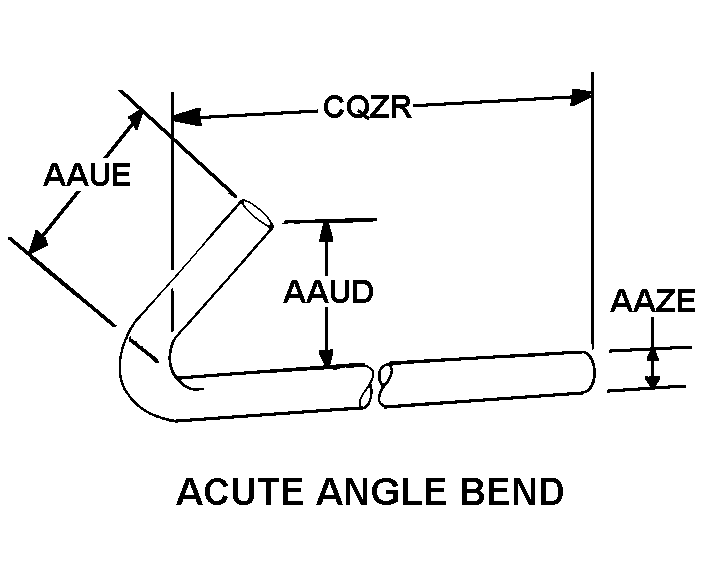

ACUTE ANGLE BEND
Cross Reference | NSN 5306-00-110-5655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112402 | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
Technical Data | NSN 5306-00-110-5655
| Characteristic | Specifications |
|---|---|
| FASTENER LENGTH | 2.875 INCHES NOMINAL |
| STYLE DESIGNATOR | ACUTE ANGLE BEND |
| DISTANCE FROM INSIDE OF BEND TO SHANK END | 2.625 INCHES NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NAVY SPECIAL PROJECT |
