Part Details | SNAP FASTENER POST
5325-00-174-2891 A flanged metallic item, usually tubular, designed to permanently fasten a STUD, SNAP FASTENER to a material. May be open or closed at either end. Excludes EYELET, METALLIC.
Alternate Parts: 216072835, 21-6072835, MS2798010N, MS27980-10N, 550C, BS550CK1105, BS10414, 5325-00-174-2891, 00-174-2891, 5325001742891, 001742891
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-174-2891 | 16558 ( POST, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

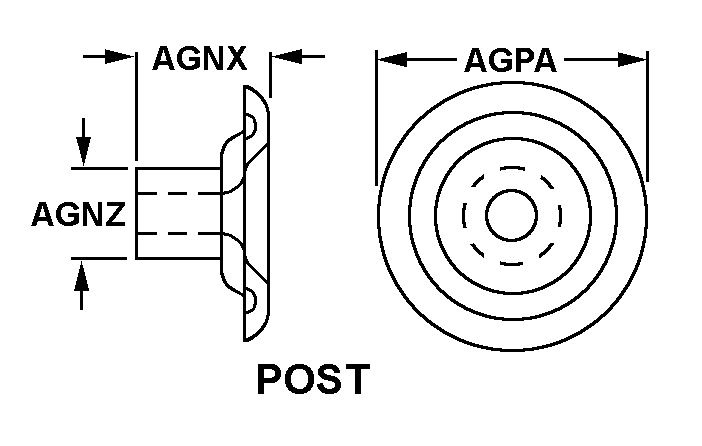

POST
Cross Reference | NSN 5325-00-174-2891
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21-6072835 | 38597 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| MS27980-10N | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| 550C | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| BS550CK1105 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| BS10414 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-174-2891
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER POST STYLE | POST |
| POST OVERALL LENGTH | 0.410 INCHES MINIMUM AND 0.420 INCHES MAXIMUM |
| POST SHANK DIAMETER | 0.156 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| POST BASE DIAMETER | 0.560 INCHES MINIMUM AND 0.570 INCHES MAXIMUM |
