Part Details | SNAP FASTENER STUD
5325-00-174-9039 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Alternate Parts: AN22736, AN227-36, MS279845N, MS27984-5N, MS279845N, MS27984-5N, 5325-00-174-9039, 00-174-9039, 5325001749039, 001749039
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-174-9039 | 16550 ( STUD, SNAP FASTENER ) |

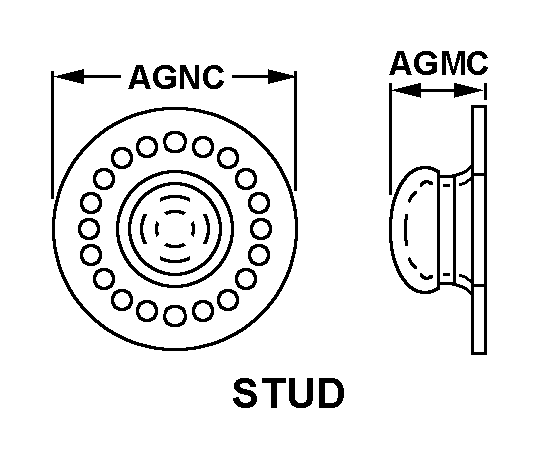

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-174-9039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-36 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| MS27984-5N | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| MS27984-5N | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5325-00-174-9039
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER STUD STYLE | STUD |
| STUD OVERALL LENGTH | 0.156 INCHES NOMINAL |
| STUD BASE DIAMETER | 0.438 INCHES NOMINAL |
| STUD RETENTION METHOD | DRILLED BASE |
