Part Details | PLAIN SEAL
5330-00-054-7837 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Alternate Parts: PH529, PH529, PH-529, 5330-00-054-7837, 00-054-7837, 5330000547837, 000547837
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 25, 1967 | 00-054-7837 | 04250 ( SEAL, PLAIN ) |
REFERENCE DRAWINGS & PICTURES

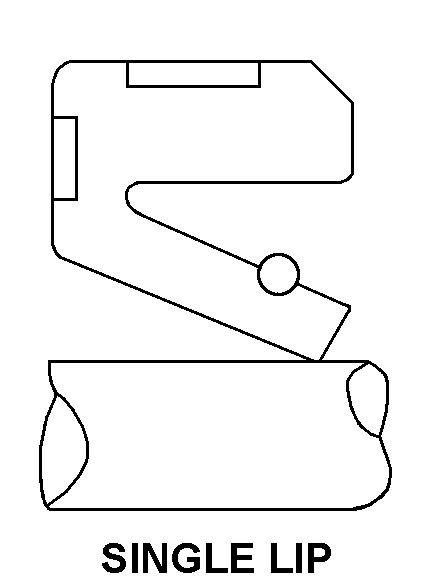

SINGLE LIP
Cross Reference | NSN 5330-00-054-7837
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PH529 | 66289 | WISCONSIN MOTORS LLC |
| PH-529 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5330-00-054-7837
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | SINGLE LIP |
| SEAL WIDTH | 0.258 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 1.234 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 1.874 INCHES NOMINAL |
