Part Details | GASKET
5330-00-067-7011 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 11025640, 110256-40, 5330-00-067-7011, 00-067-7011, 5330000677011, 000677011
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-067-7011 | 04522 ( GASKET ) |

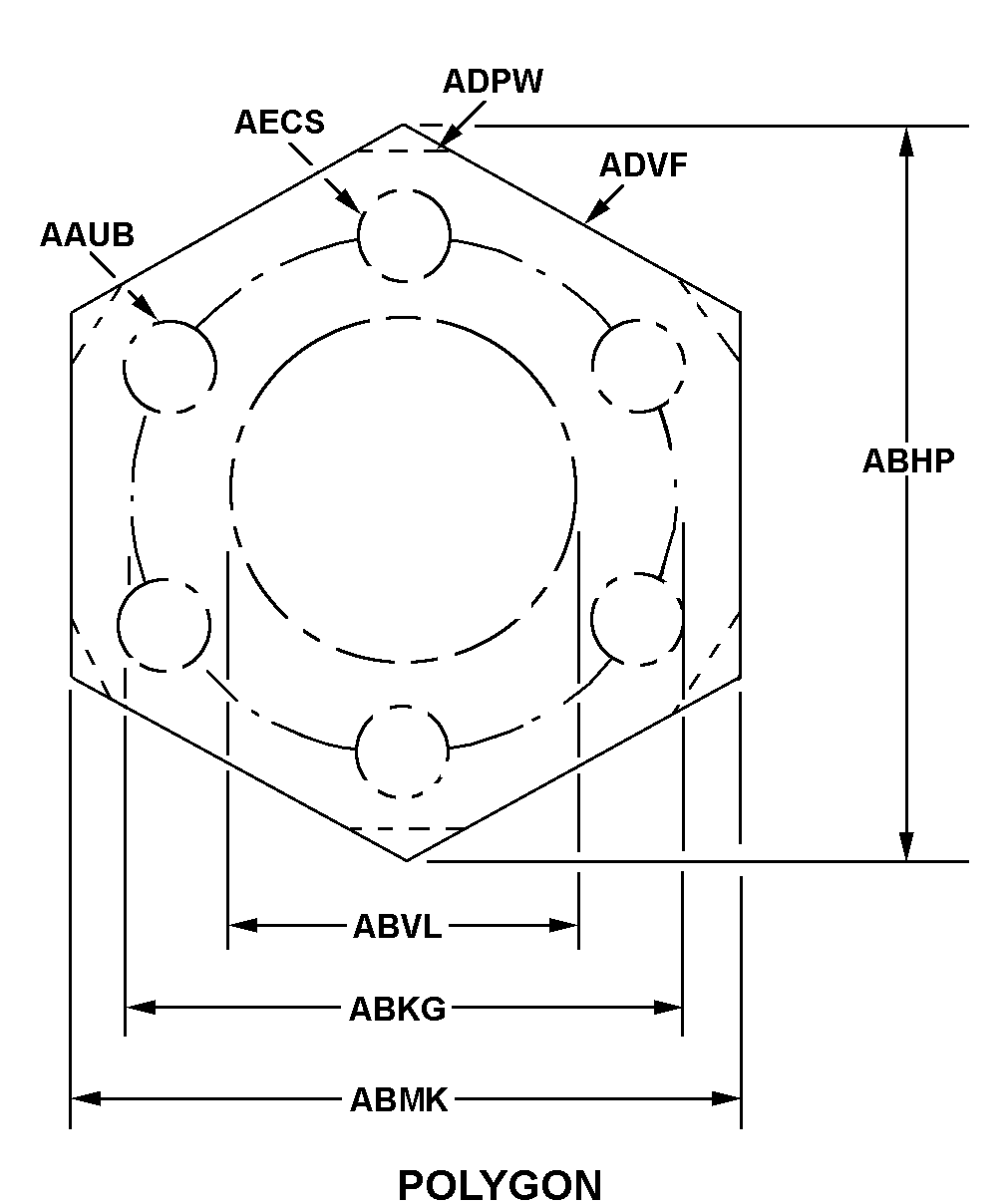

REFERENCE DRAWINGS & PICTURES
METAL AND NONMETALLIC MATERIALS
POLYGON
Cross Reference | NSN 5330-00-067-7011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110256-40 | 83259 | PARKER-HANNIFIN CORPORATIONDBA COMPOSITE SEALING SYSTEMS |
Technical Data | NSN 5330-00-067-7011
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 0 METAL AND NONMETALLIC MATERIALS |
| CROSS-SECTIONAL THICKNESS | 0.130 INCHES NOMINAL |
| GAGE RING THICKNESS | 0.090 INCHES NOMINAL |
| STYLE DESIGNATOR | POLYGON |
| HOLE DIAMETER | 0.328 INCHES |
| OVERALL LENGTH | 6.750 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 3.812 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| APERTURE DIAMETER | 2.341 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.164 INCHES NOMINAL |
| PERIPHERAL FLAT QUANTITY | 6 |
| BOLT HOLE QUANTITY | 6 |
