Part Details | WIPER RING
5330-00-068-6568 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Alternate Parts: 114H68271, 114H6827-1, 5330-00-068-6568, 00-068-6568, 5330000686568, 000686568
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 07, 1967 | 00-068-6568 | 20256 ( RING, WIPER ) |
REFERENCE DRAWINGS & PICTURES

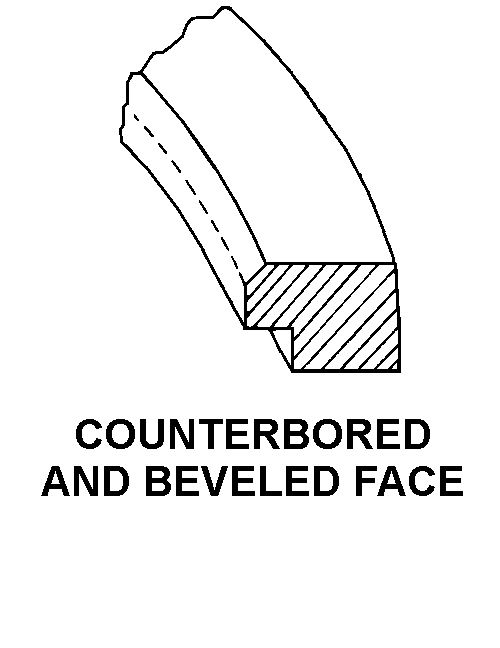

COUNTERBORED AND BEVELED FACE
CONCENTRIC
Cross Reference | NSN 5330-00-068-6568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114H6827-1 | 77272 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 5330-00-068-6568
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | COUNTERBORED AND BEVELED FACE |
| RING STYLE | CONCENTRIC |
| INSIDE DIAMETER | 1.236 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.630 INCHES MINIMUM AND 1.634 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.218 INCHES NOMINAL |
| OUTER EDGE THICKNESS | 0.126 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| SPECIAL FEATURES | ID TAPERED 10 DEG TOWARD RIGHT FACE,MATERIEL OBTAINED FROM W. S. SHAMBAN COMPANY,FSCM 97820 |
