Part Details | COUPLER SEAL SLEEVE
5330-00-070-2253 A cylindrical shaped item constructed of pliable nonmetallic solid or laminated materials. It is designed to fit around flanged or beaded end tubing, ducts, piping, and the like, to form a tight and effective seal against gases and liquids; when compressed with a clamp. For items used to convey air under low pressure, see HOSE, AIR DUCT. Excludes PACKING, PREFORMED; TUBING, NONMETALLIC; and BUSHING, RUBBER.
Alternate Parts: 42737825, 42737-825, 427378250, 42737-8-250, 5330-00-070-2253, 00-070-2253, 5330000702253, 000702253
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 13, 1967 | 00-070-2253 | 20780 ( SLEEVE, SEAL, COUPLER ) |
REFERENCE DRAWINGS & PICTURES

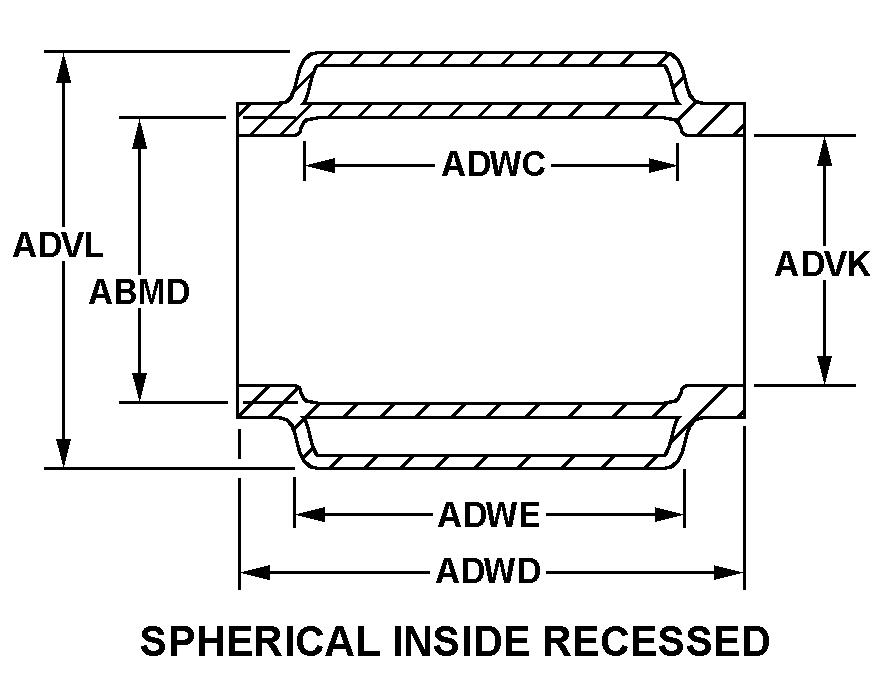

SPHERICAL INSIDE RECESSED
Cross Reference | NSN 5330-00-070-2253
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 42737-825 | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
| 42737-8-250 | 89446 | HILLER AIRCRAFT CORPORATION |
Technical Data | NSN 5330-00-070-2253
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | SPHERICAL INSIDE RECESSED |
| RECESS DIAMETER | 1.125 INCHES NOMINAL |
| RECESS LENGTH | 0.776 INCHES MINIMUM AND 0.938 INCHES MAXIMUM |
| CROSS SECTION INSIDE DIAMETER | 0.938 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| RAISED DIAMETER LENGTH | 1.098 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| CROSS-SECTIONAL LENGTH | 1.500 INCHES MINIMUM AND 1.625 INCHES MAXIMUM |
