Part Details | WIPER RING
5330-00-070-7339 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Alternate Parts: 85335, 85-335, 5330-00-070-7339, 00-070-7339, 5330000707339, 000707339
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-070-7339 | 20256 ( RING, WIPER ) |
REFERENCE DRAWINGS & PICTURES

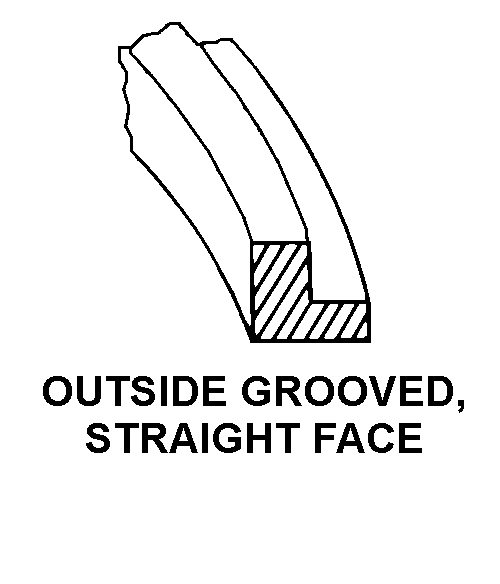

OUTSIDE GROOVED, STRAIGHT FACE
CONCENTRIC
VERTICAL JOINT
Cross Reference | NSN 5330-00-070-7339
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 85-335 | 97153 | GOODRICH CORPORATIONDBA GOODRICH AEROSPACE |
Technical Data | NSN 5330-00-070-7339
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | OUTSIDE GROOVED, STRAIGHT FACE |
| JOINT STYLE | VERTICAL JOINT |
| RING STYLE | CONCENTRIC |
| INSIDE DIAMETER | 5.016 INCHES NOMINAL |
| OUTSIDE DIAMETER | 6.078 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.531 INCHES NOMINAL |
| OUTER EDGE THICKNESS | 0.5310 INCHES NOMINAL |
| FSC APPLICATION DATA | AIRCRAFT HYDRAULIC SYSTEM |
